Bearon Aquatics Timer for Aerator or Ice Eater

Bearon Aquatics Timer for Aerator or Ice Eater

Plug And receptacle for in-line use

• Model P1101 – 115V
• Model T104P – 230V PIGTAIL ONLY/NO PLUG

Bearon Aquatics Timer for Aerator or Ice Eater features and benefits:

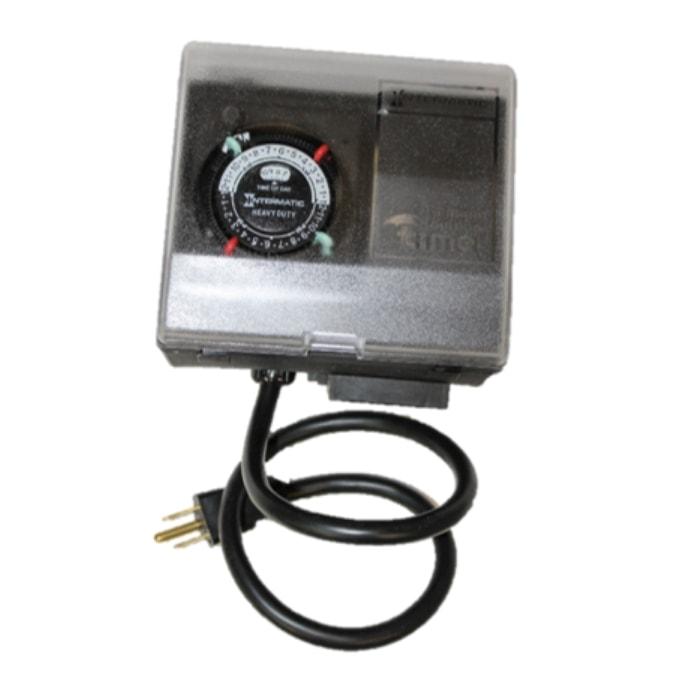

Intermatic P1101 – Portable Outdoor 24 Hour Timer Automatic Control Features:

• Outdoor grade plastic
• Timer: 24-hour with 23-1/2 hour maximum on time. (2) “ON” & (2) “OFF” trippers – standard.
• Dial will accept up to 12 sets of trippers.
• Electrical Rating: 15 A (1800 W), Resistive or Tungsten
• Agency Approval: CSA/C-US
• Outdoor grade cord with ground plug, 3 wire, 22 inches

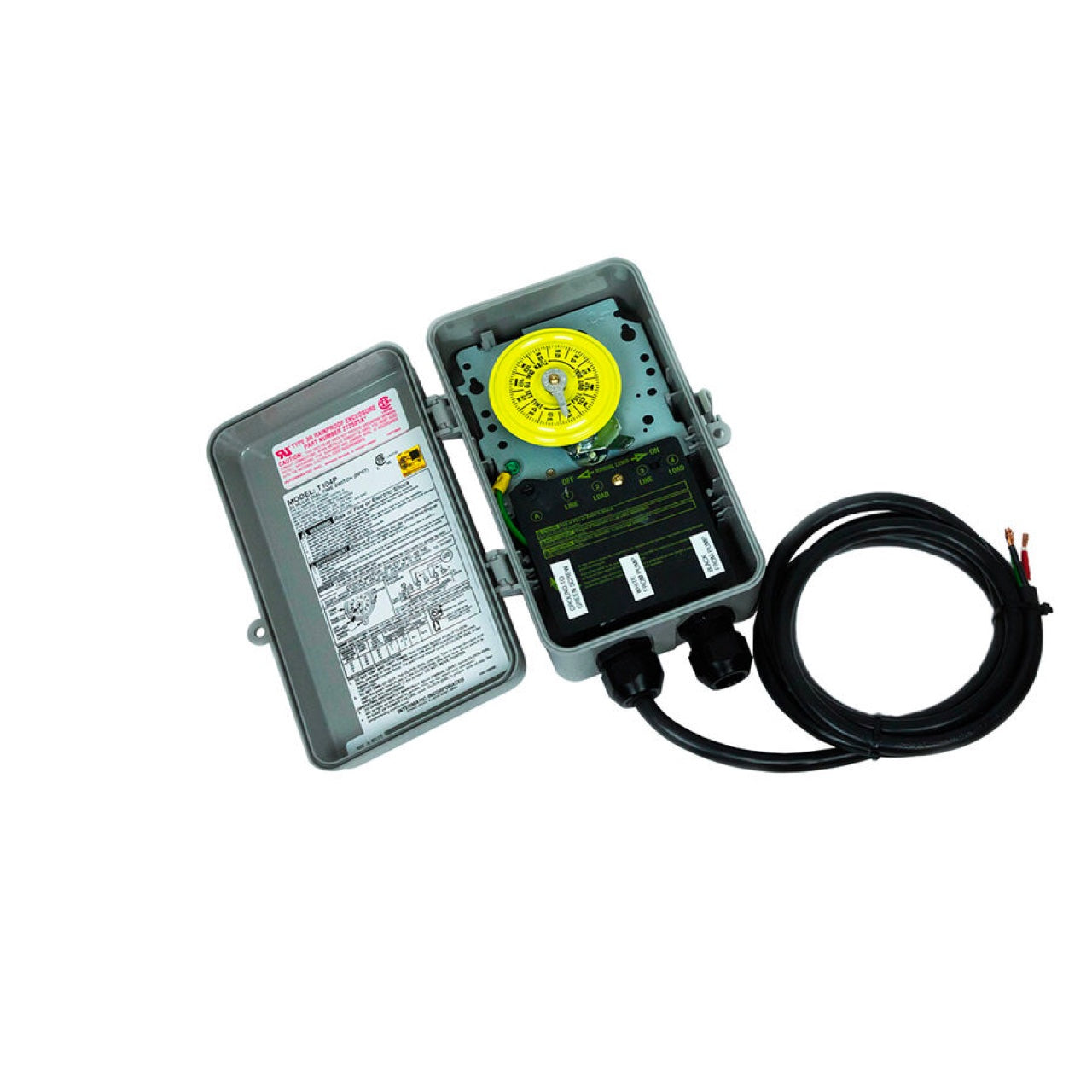

Intermatic T104P – 24 Hour Dial Time Switch with enclosure – 230V PIGTAIL ONLY/NO PLUG

• Designed for industrial, commercial and residential applications.
• The Heavy Duty 40 Amp 208/277 Volt Timer has the highest horsepower ratings in the industry for loads up to 40 amps resistive from 208/277 volts providing direct 24-hour time switch control.
• This series provides from 1 to 12 “ON/OFF” operations daily with minimum ON/OFF times of 1 hour.
• This product comes with a timer mechanism, heavy-duty plastic enclosure, and (1) “On” & (1) “Off” tripper

Bearon Aquatics Timer for Aerator or Ice Eater Specifications:

• Weight: 3 lbs
• Dimensions: 51 × 41 × 16 in
• Voltage: 115V, 230V

Power House Ice Eater Manual (2021 update)

WARNING: Cancer and Reproductive Harm - P65 Warning; California
