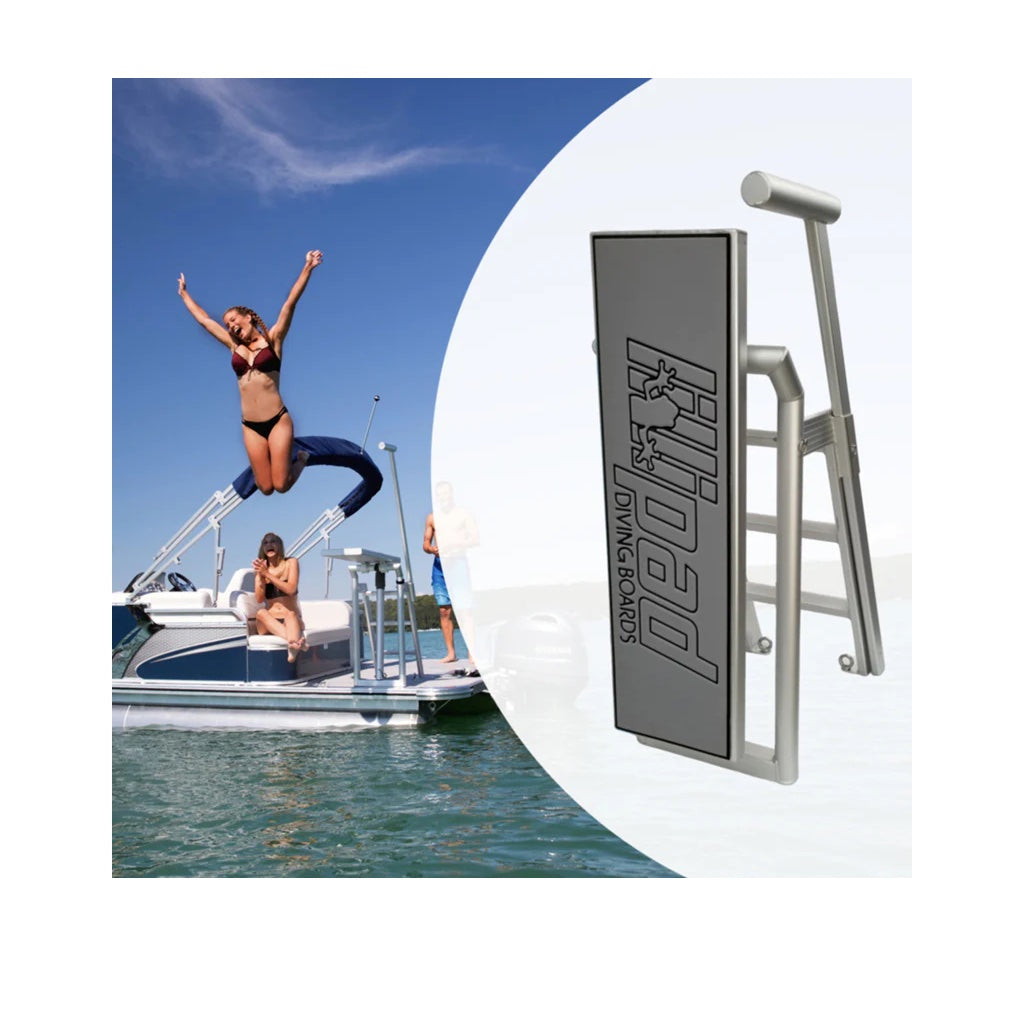

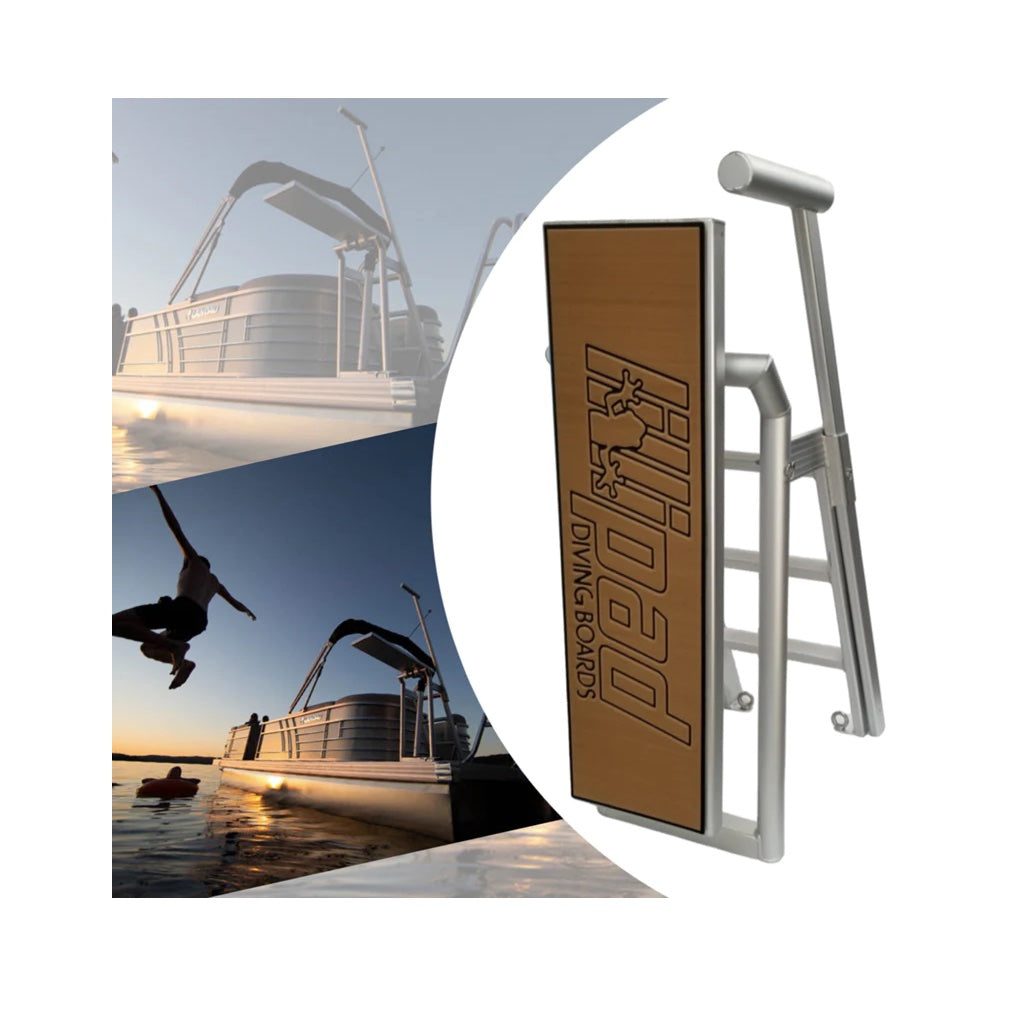

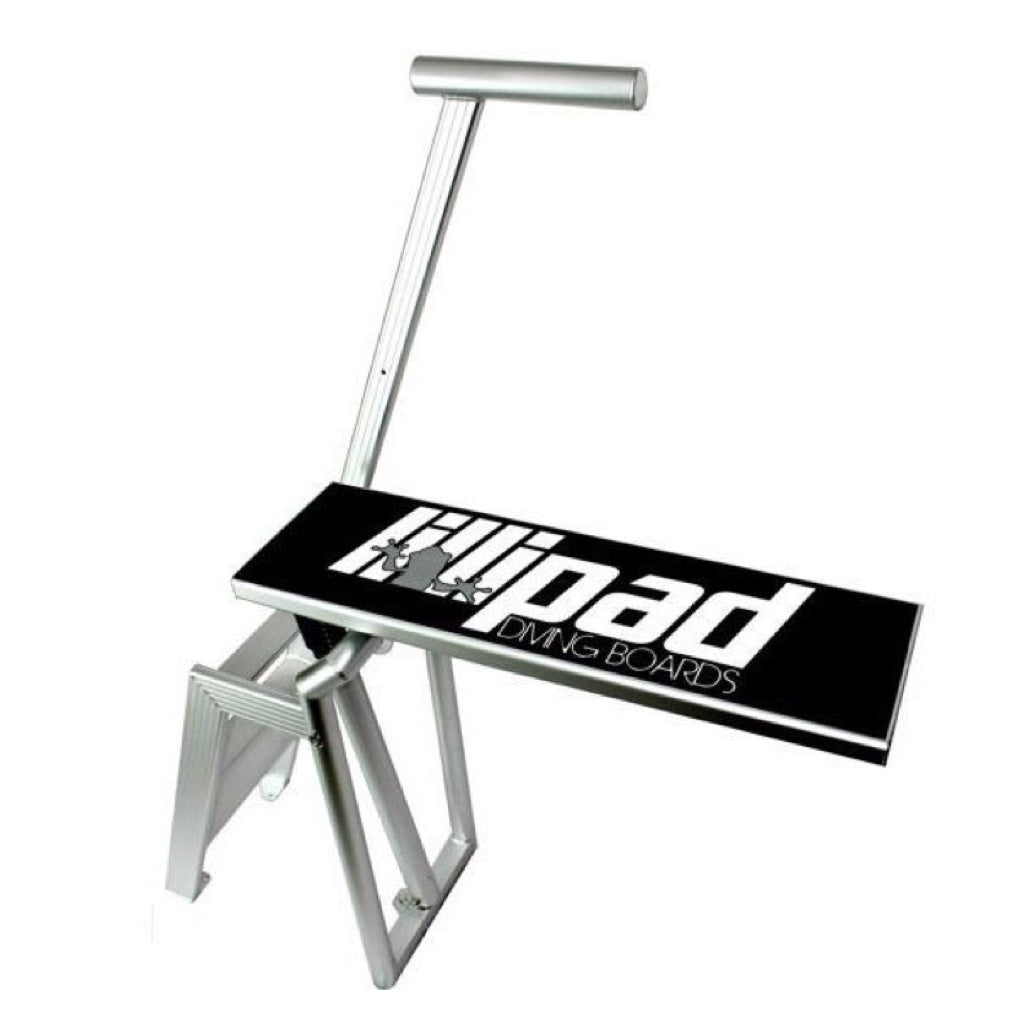

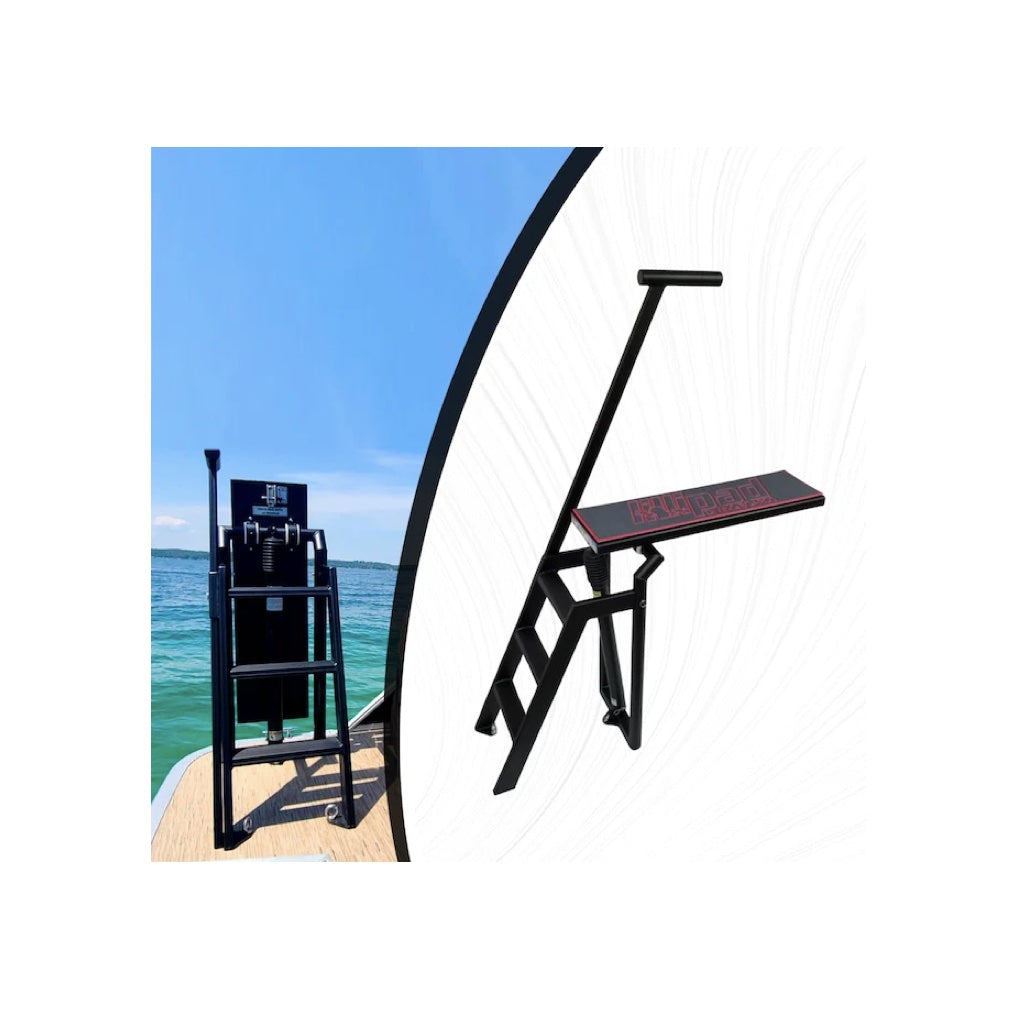

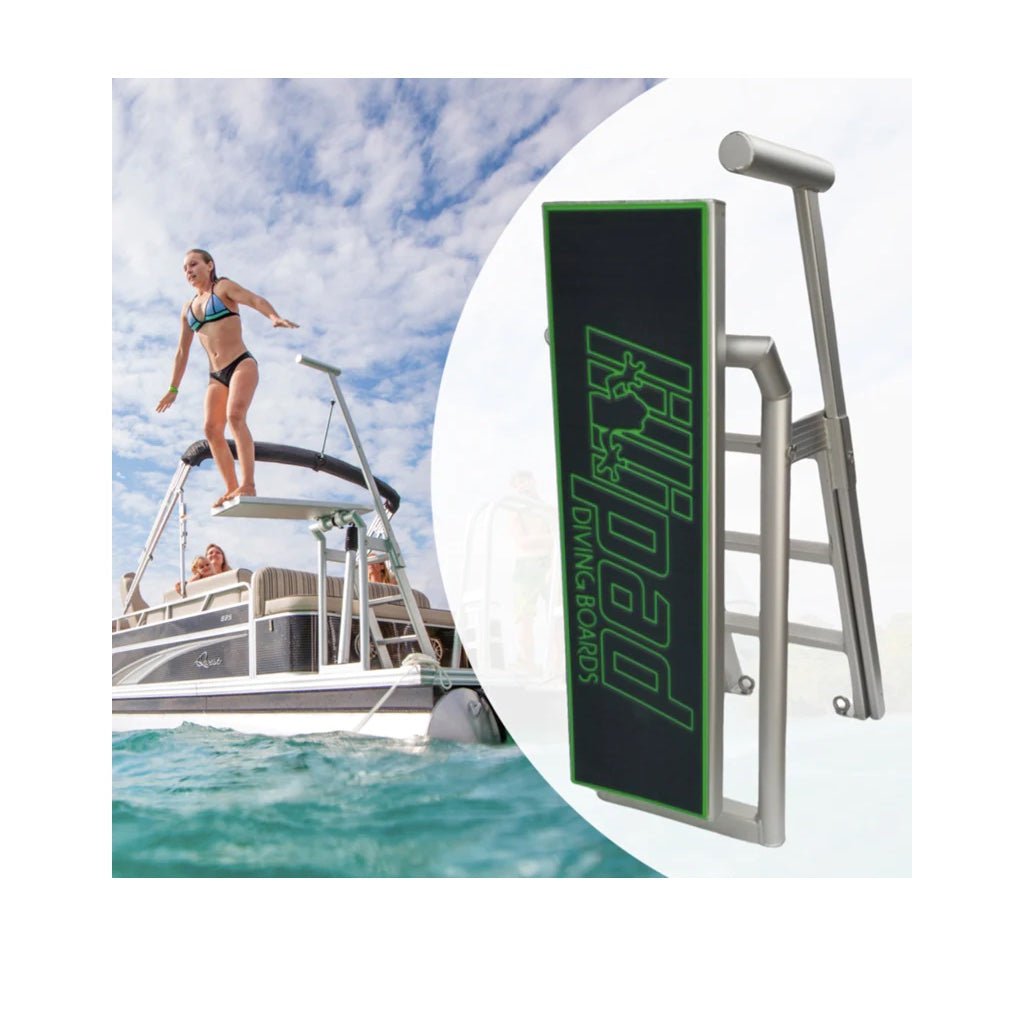

Lillipad Diving Board for Boat

The Lillipad Diving Board for Boats is the #1 Way to Maximize Your Boating Fun!

Are you looking to maximize your boating fun?  If you answered 'Yes', then you have come to the right webpage! The Lillipad Diving Board is an amazing addition to any vessel and is the only diving board patented and specifically designed for a boat.  You will be amazed at the amount of non-stop fun that the Lillipad Diving Board provides. We are not alone in our praise, not only did it win the Innovation Award at the world-renowned Miami International Boat Show, but we also continually get messages from new owners who are overjoyed with their purchase!

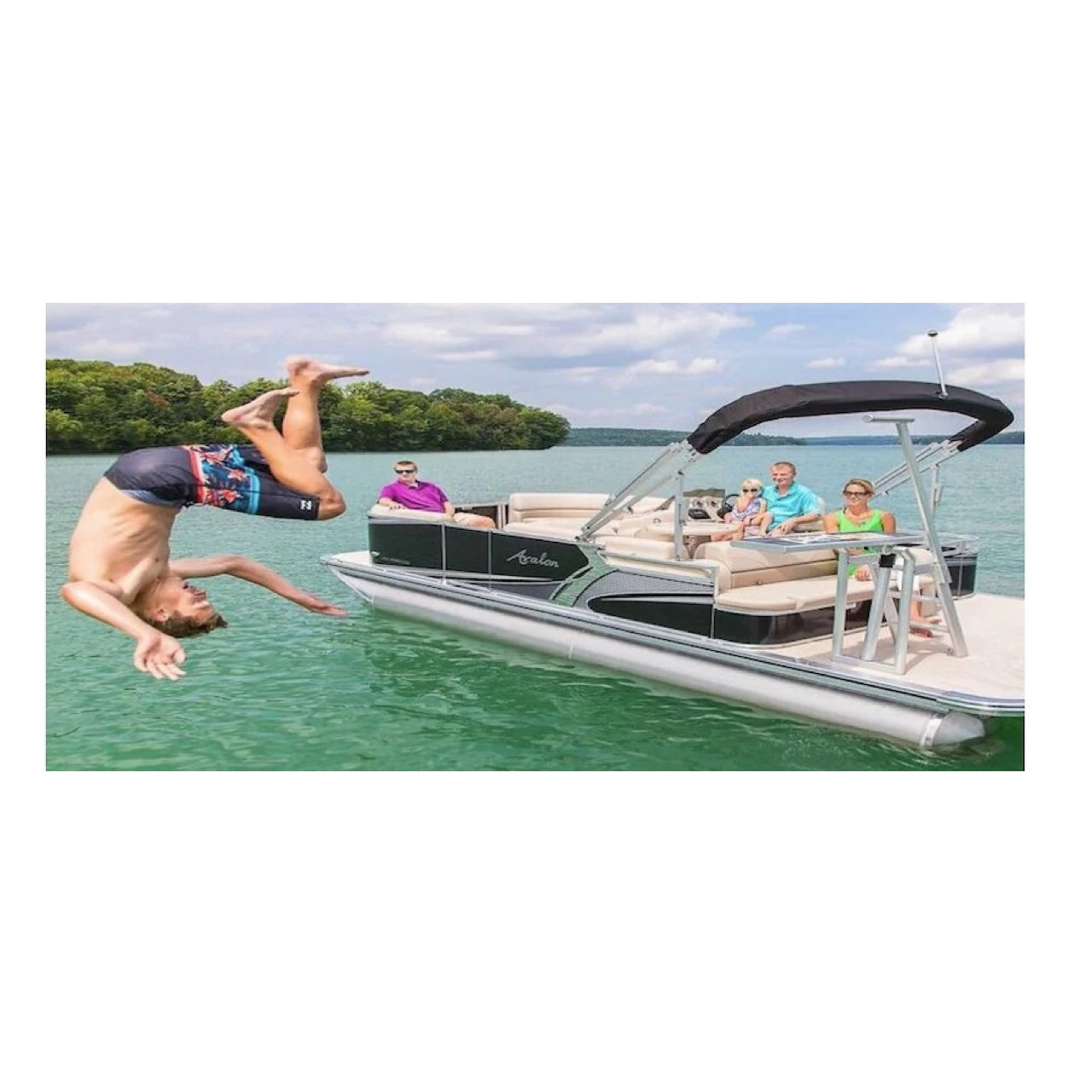

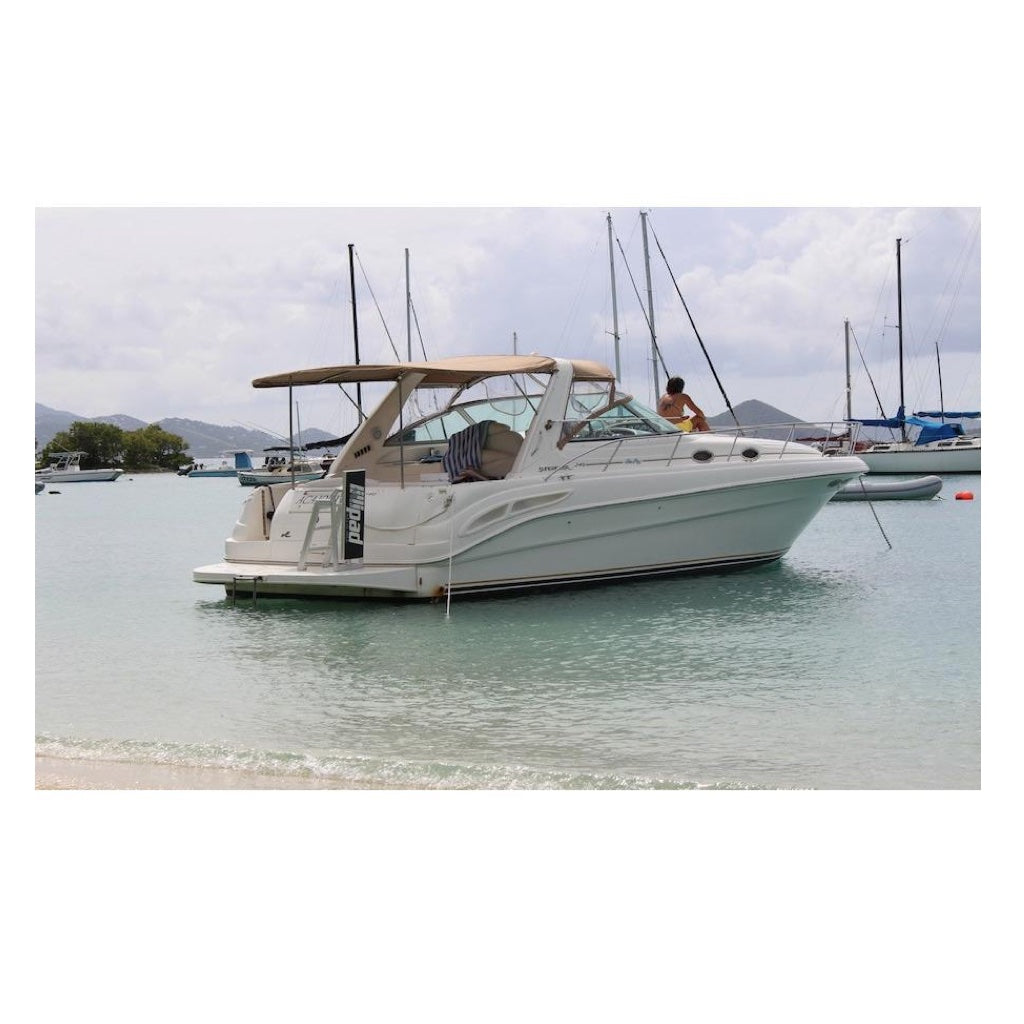

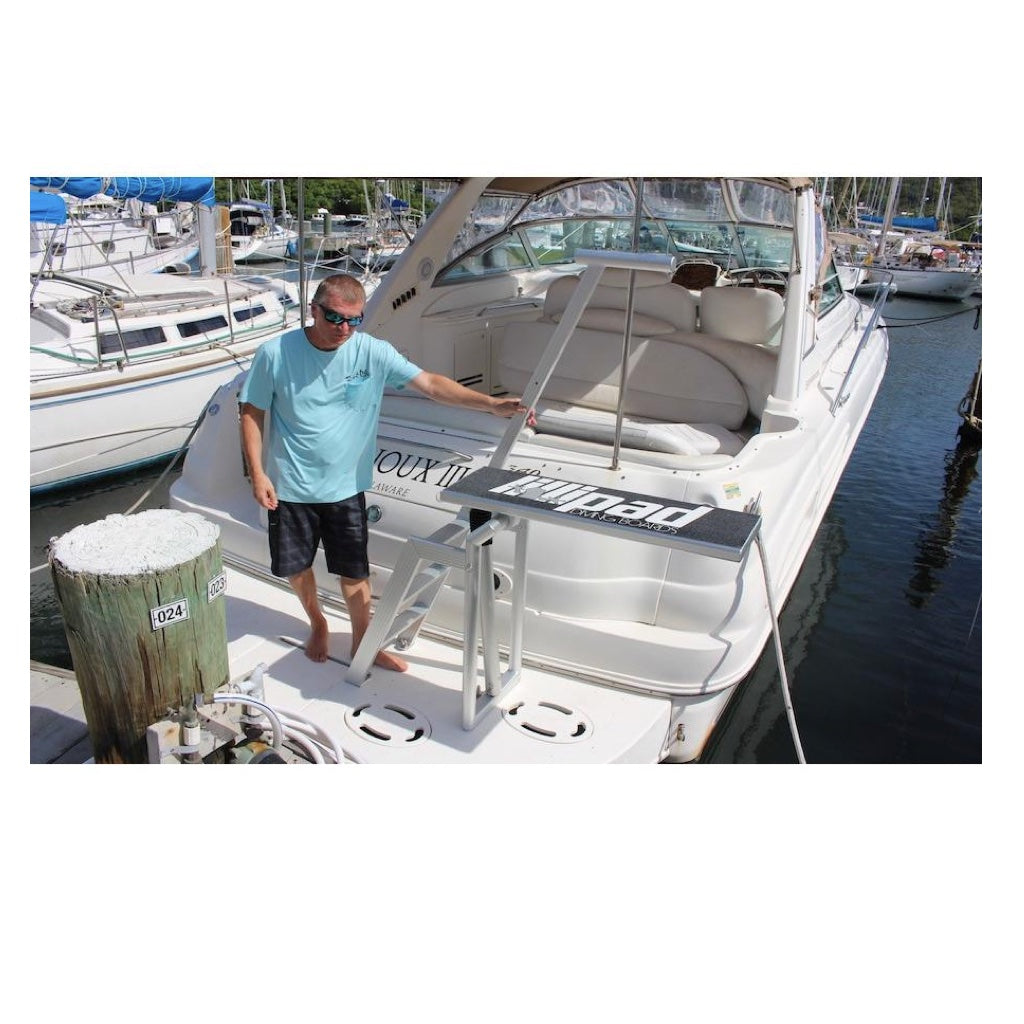

The Lillipad Diving Board is most often used as a pontoon boat diving board, but it is also popular on cruisers, houseboats, and yachts. I is easily compatible with most boats over 18 feet. With the Lillipad Diving Board, you now have a safer and more fun way to plunge into the water.

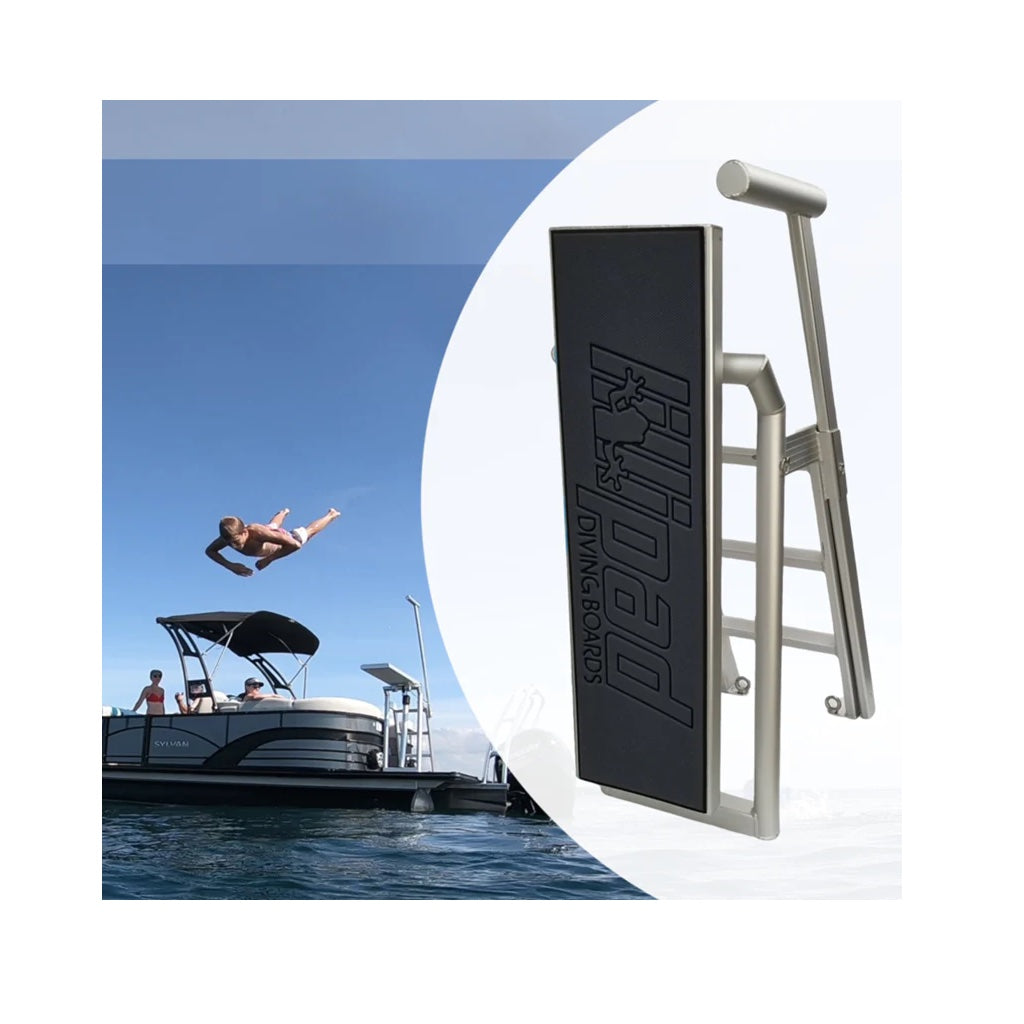

Part of the innovative design includes the spring-action board. This spring transfers the energy and amazingly keeps the boat from rocking while springing you into the water.  The boat will stay so still that people on the boat can relax and sip drinks without the worry of the boat rocking and food and drinks spilling. You can watch the video below for a demonstration. It really is hard to say enough good things about the awesome Lillipad Diving Board.

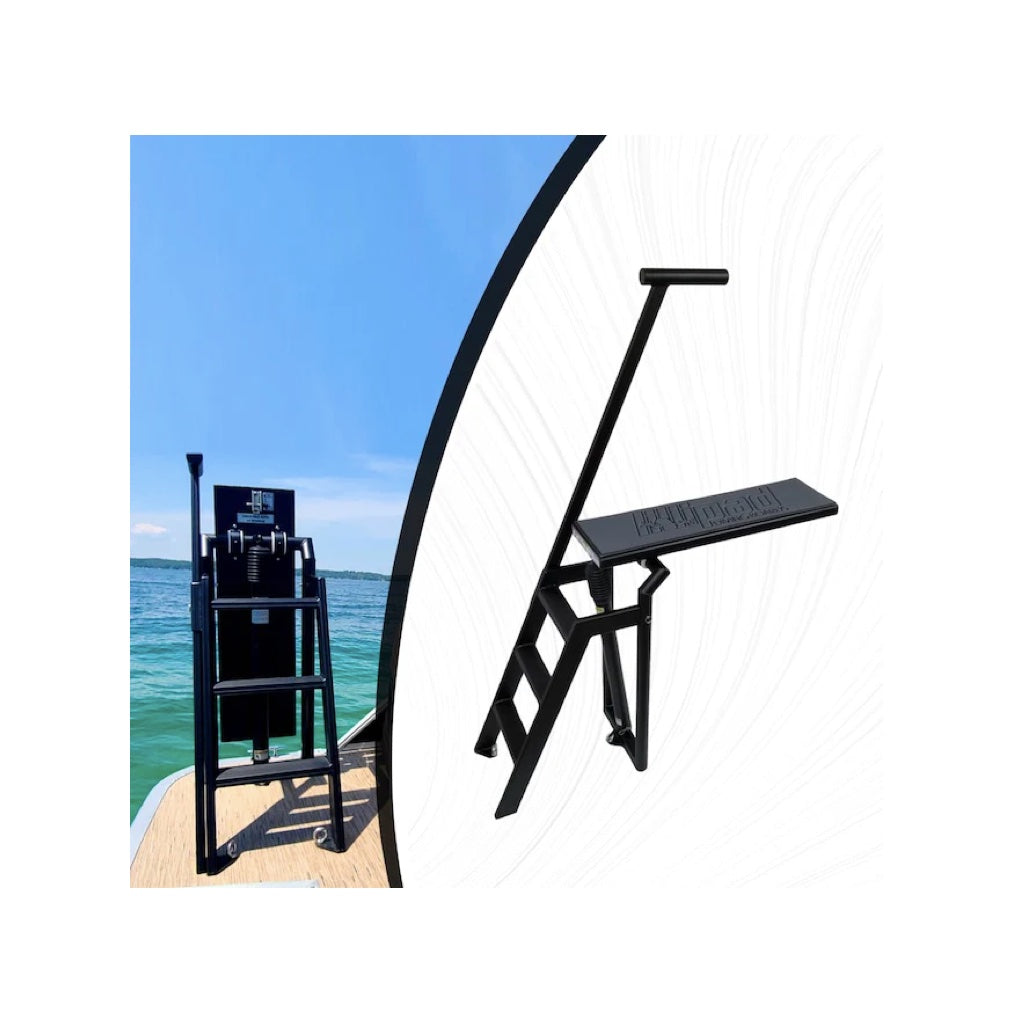

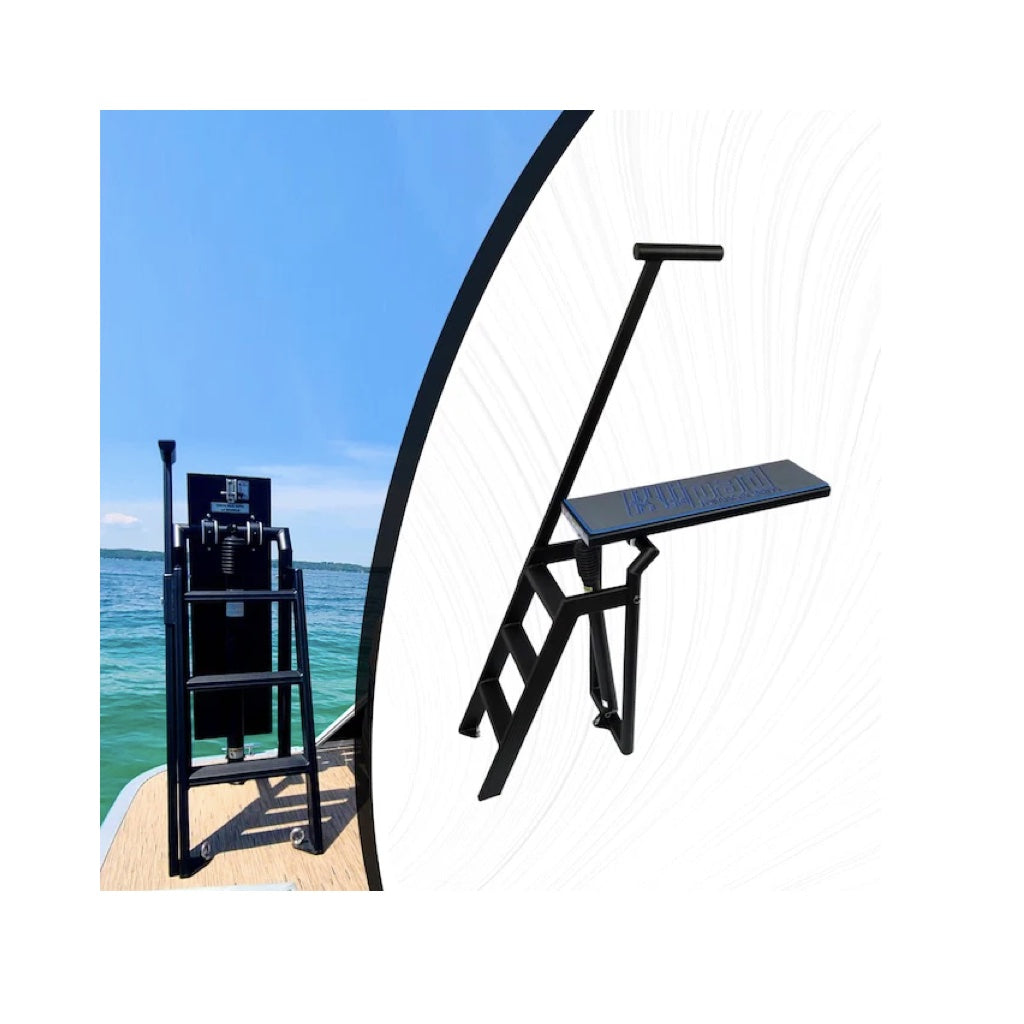

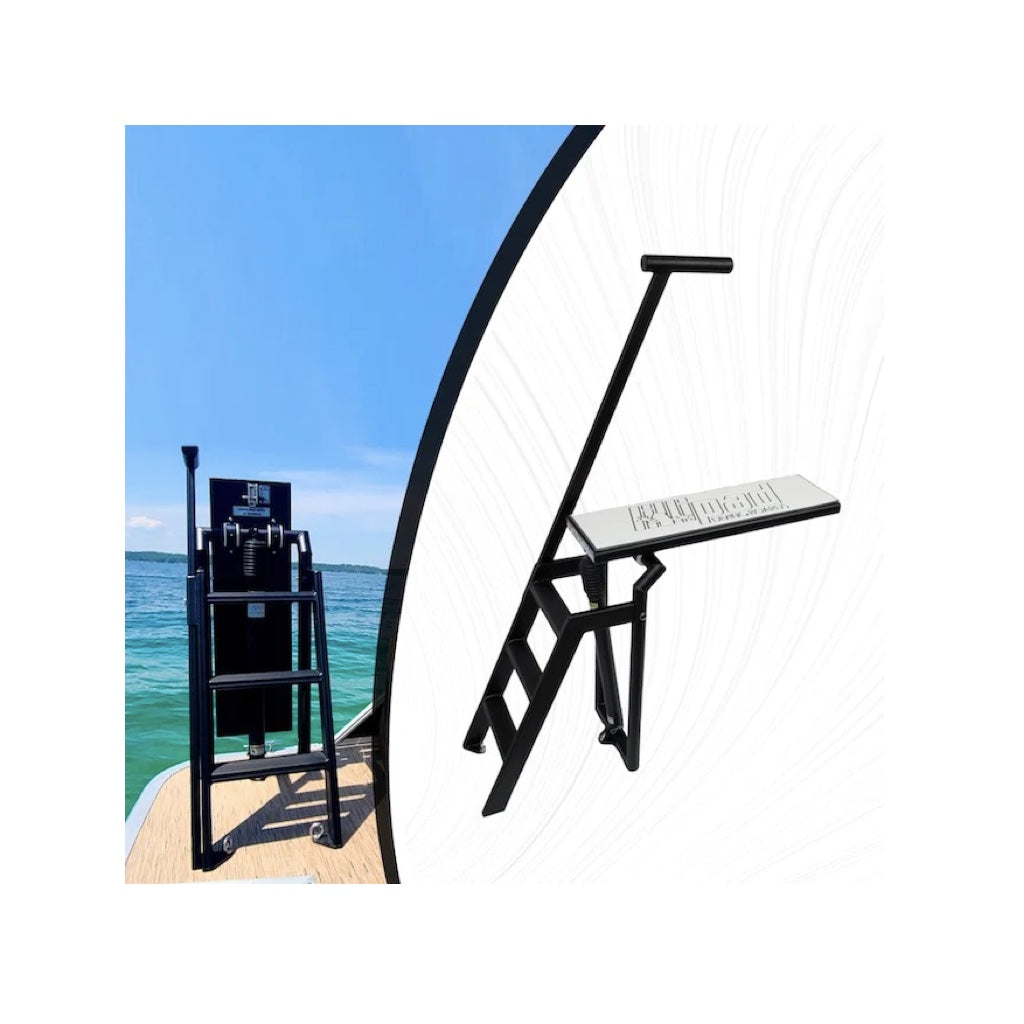

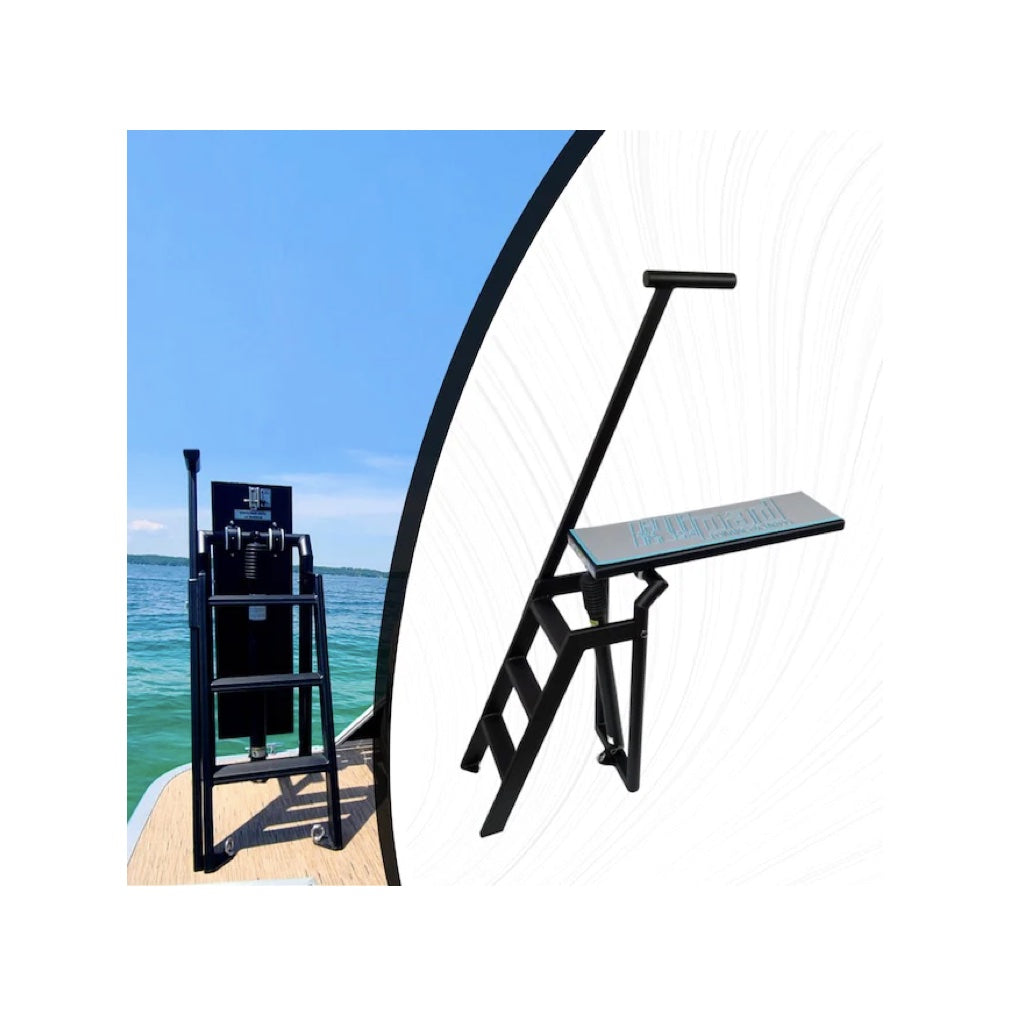

The Lillipad Diving Board is not just great for kids, adults love it too and it supports a weight of up to 250 lbs. When the boat diving board is not in use it can quickly and easily be broken down and even fully removed.  You can simply remove the quick-release pin to fold the boat diving board down or you can quickly unscrew the 3 eye bolts on the mount to remove the board from the boat, either can be done in a matter of minutes.

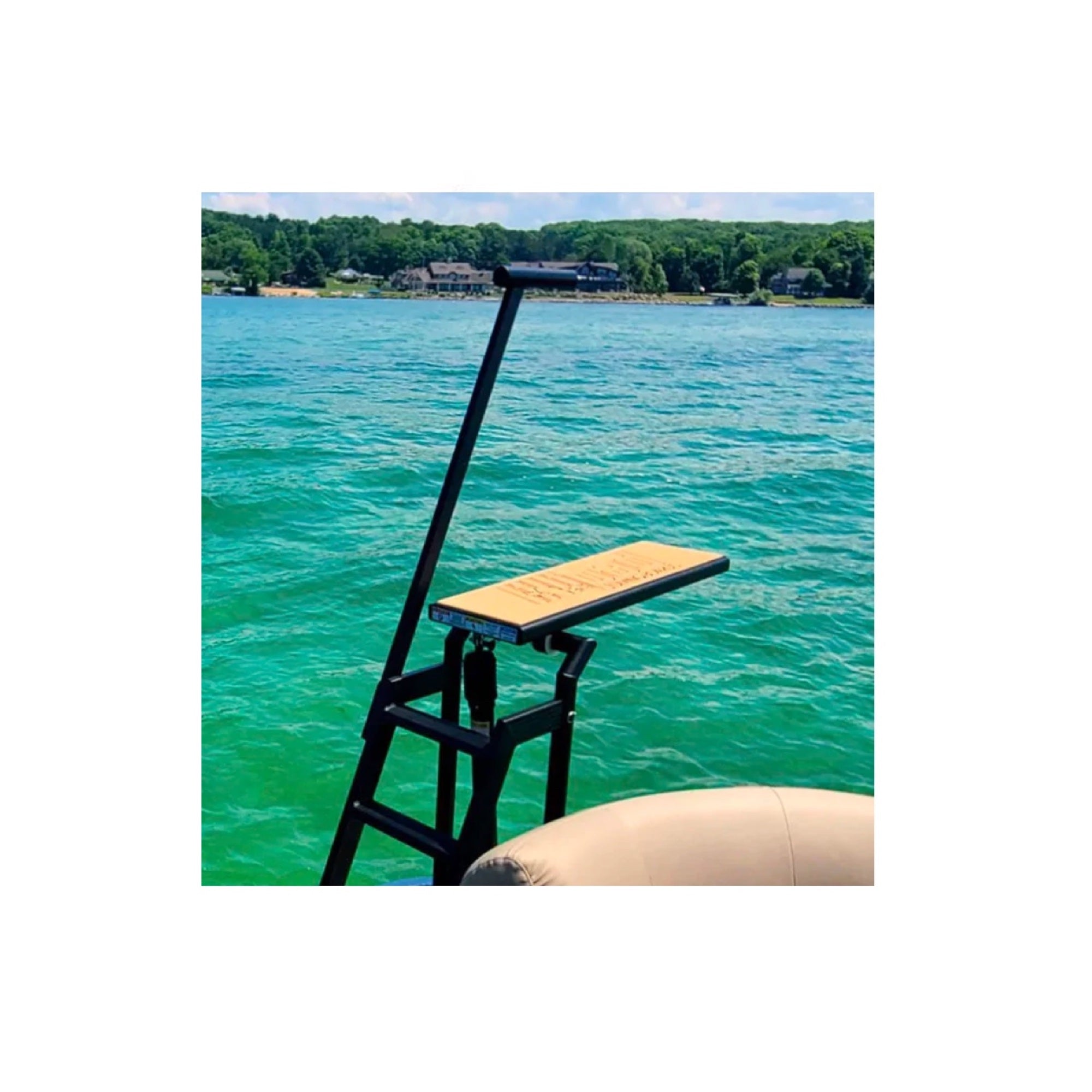

There was a lot of attention to detail to create a reliable, durable, first-class design.  Stainless steel, a heavy wall aluminum extrusion, and urethane spring components ensure your Lillipad Diving Board will perform well, stand the test of time and keep corrosion to a minimum.  An adjustable stabilizer rail and a grip tape that gives you excellent traction make it safe and user-friendly. The Lillipad Diving Board is full of safety features and guaranteed to add more fun to your days on the boat, get yours today!

Lillipad Diving Board for Boat Features and Benefits:

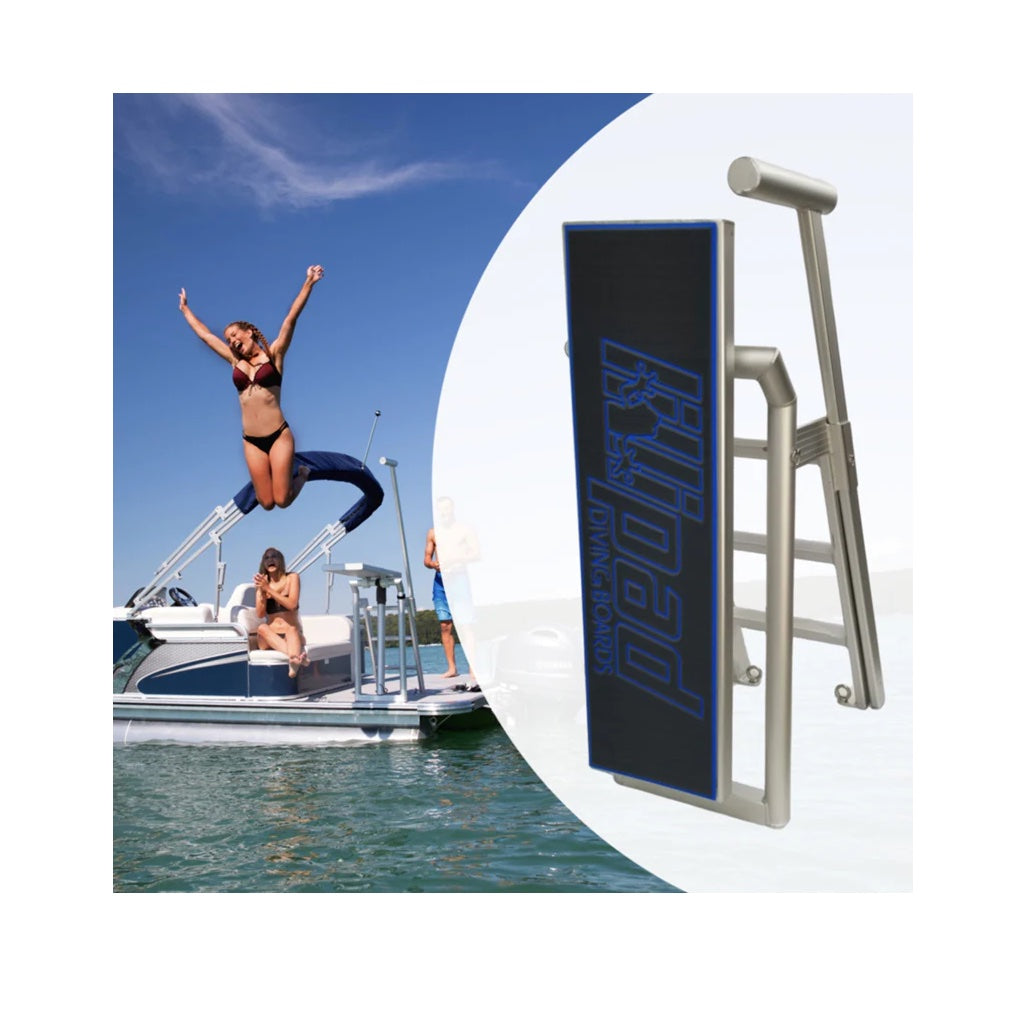

• Spring-loaded design neutralizes the energy from the boat diving board user ensuring the boat does not rock at all and that there is little stress on the boat. People can relax on the boat without being rocked while others use the Lillipad diving board to launch into the water with extra spring.
• Heavy-duty, heavy-wall aluminum extrusions, stainless steel, and urethane spring components ensure that your board is built to last and that corrosion and component failures are completely minimal.
• Safety. A quick-release pin needs to be in place to use the boat diving board. Now the captain can ensure the boat is in a safe area (No obstructions, at least 15ft deep) before the boat diving platform is in use.  The quick-release pin also allows you to easily put it down for docking trailering or when the boat is in motion.  Heavy-grade grip tape ensures no slipping.

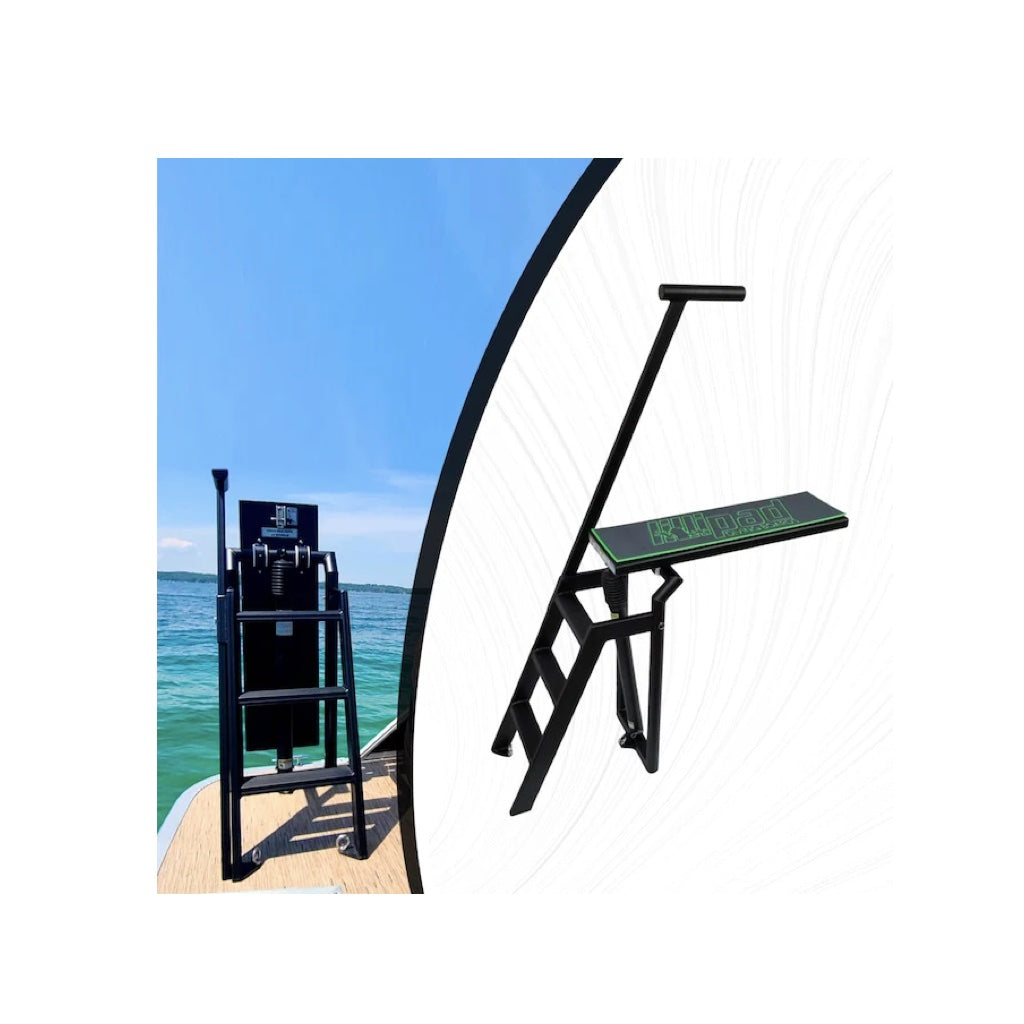

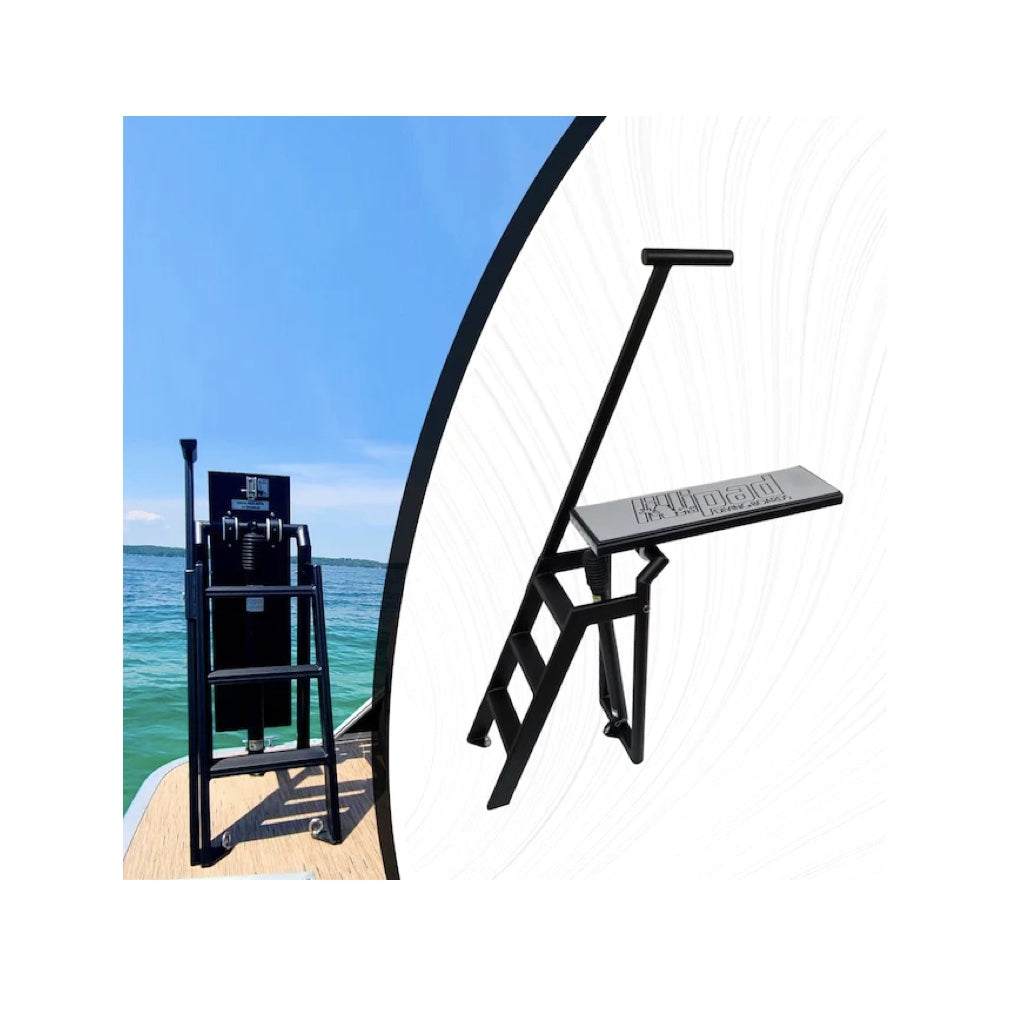

• The Lillipad Diving Board is easily stowed by quickly unscrewing 3 eye bolts that secure the frame to the boat.  Easily separates into 3 smaller components for storage. We recommend a boat diving board cover as well, for protection and organization.

Where Do I Mount My Lillipad Diving Board?

Your first 2 steps in deciding on a mount are to decide where on your boat you want to mount the boat diving board and make sure your boat meets the minimum requirements.

• Boats must be at least 18ft long and at least 7 ft wide for a LIllipad Diving Board to be used.
• Your boat floor needs to be at least ¾” Marine Grade Plywood, ¾” Solid Fiberglass, or composite flooring.

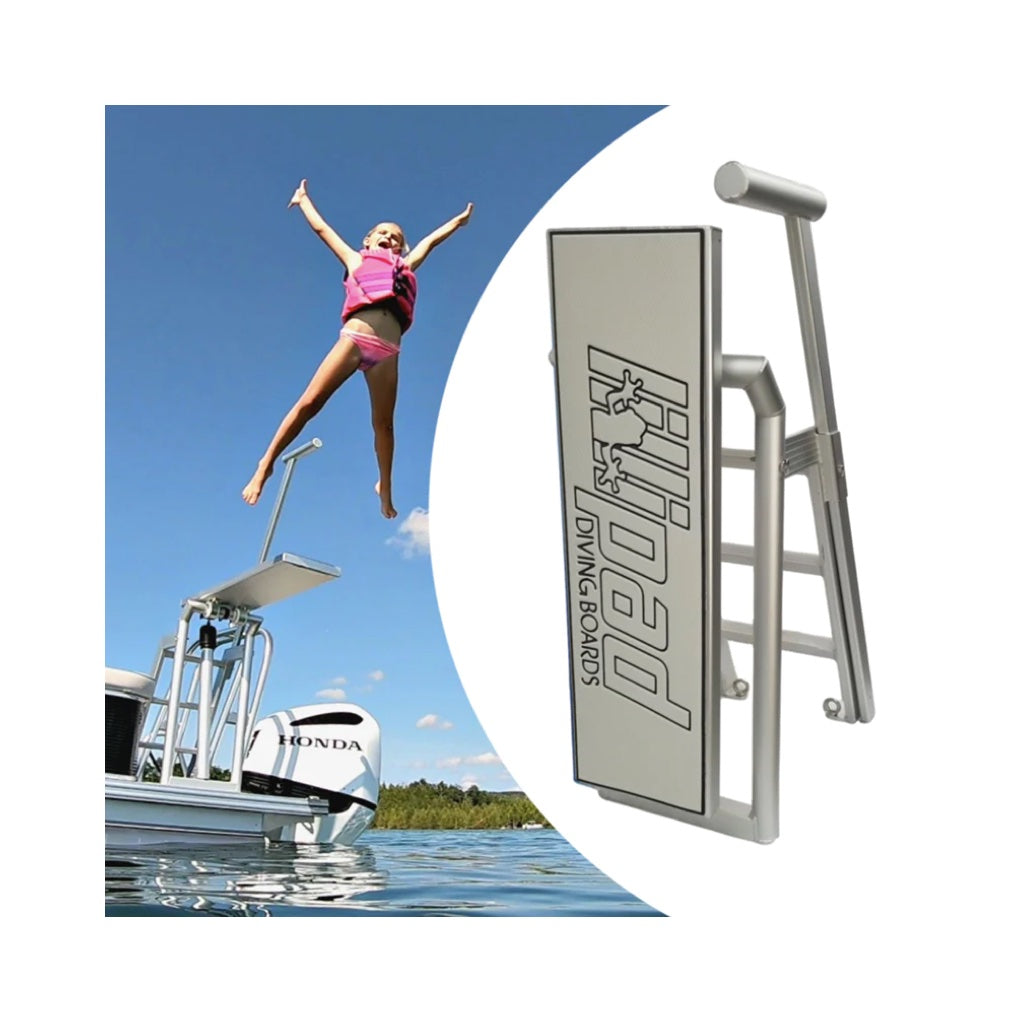

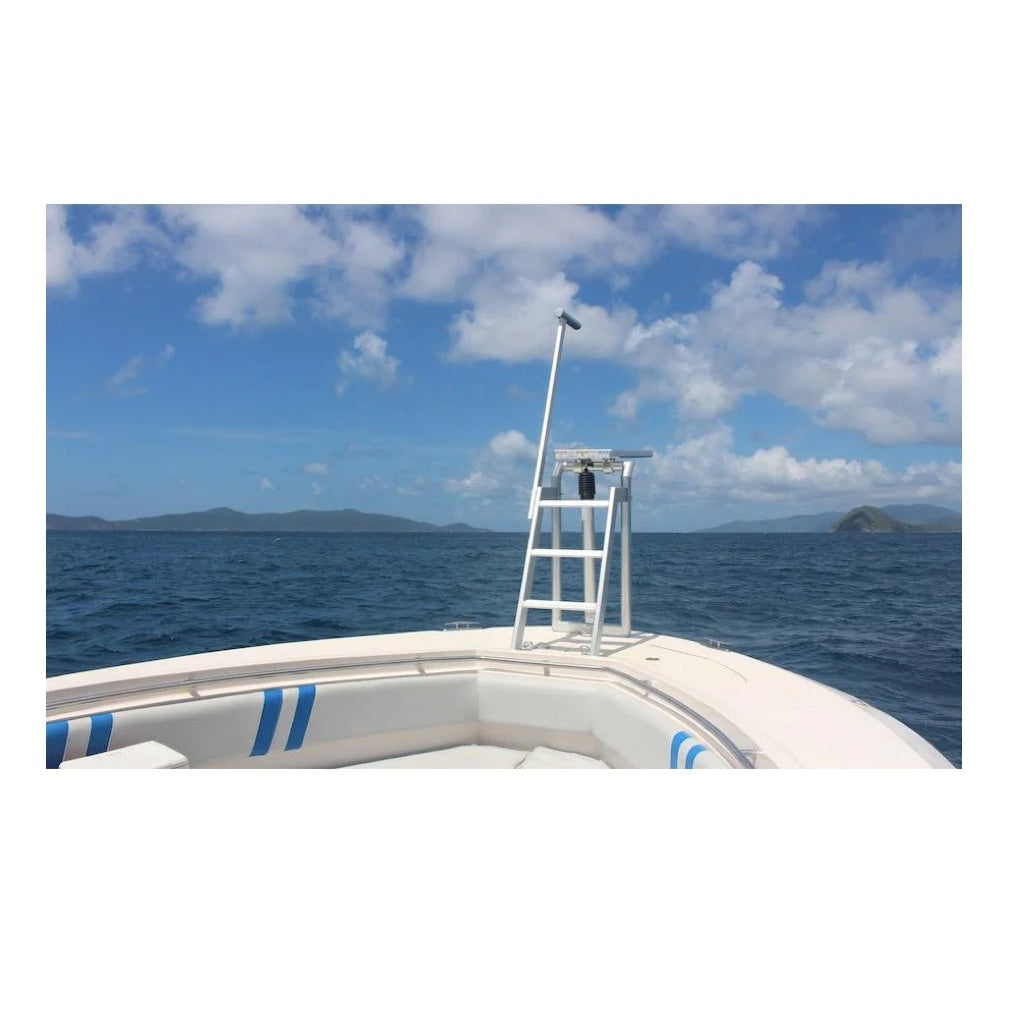

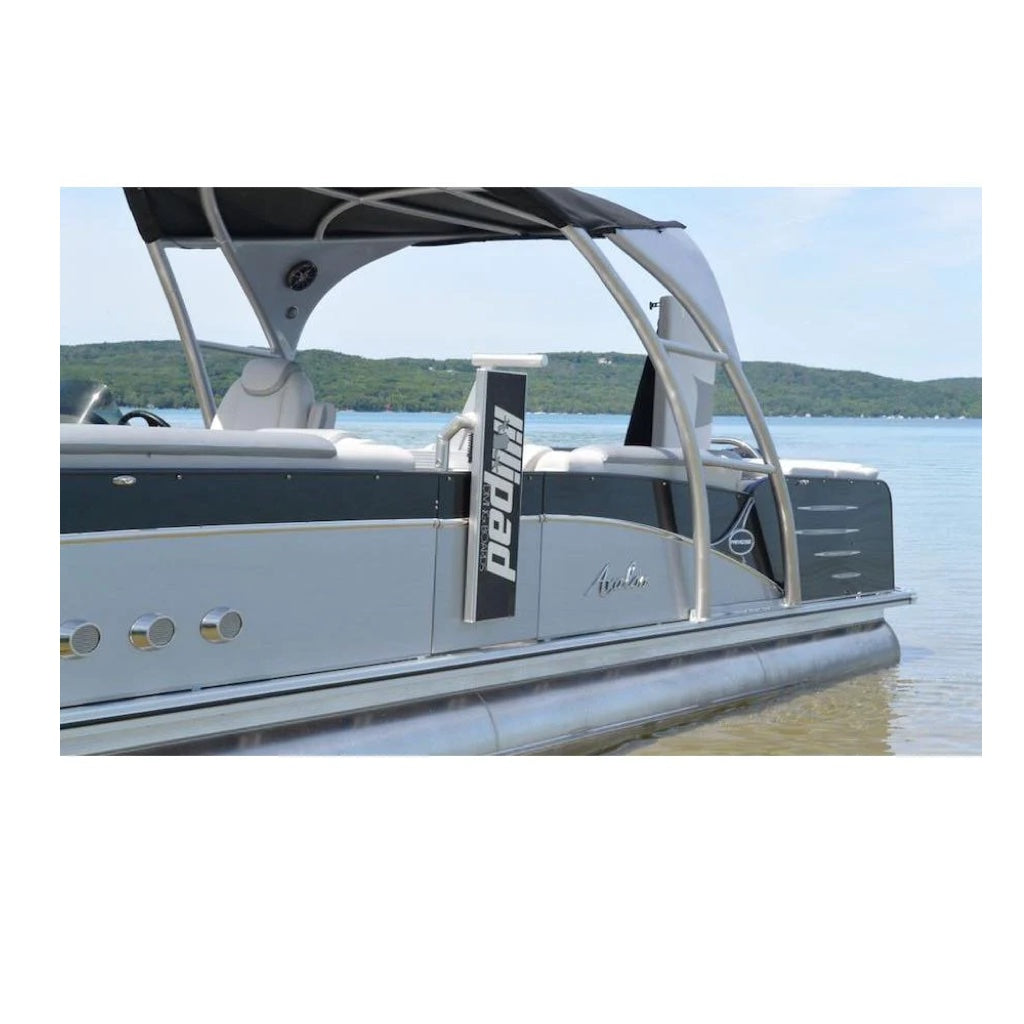

Approved Mounting Positions:  Side Door Mounting: this popular mounting position provides stability from boat movement and is free of protruding obstructions. You can still use the side door as the diving board can quickly and easily be taken down and stowed.  Rear Platform / Swim Platform Mounting:  Another popular position. If you have a swim platform at the stern, mounting on the Port side is preferred because the stabilizer handle is mounted on the left. This keeps jumpers away from the motor. Bow / Front Mount: This position is permitted on boats that DO NOT have any objects protruding from the front of the vessel.

3 Lillipad Diving Board Mounting Options:

• Underfloor Mount

• Surface Mount

• Ghost Mount


Underfloor Mount: If you can easily access the underside of your boat and it meets the correct spacing requirements for placing the mounting plates without obstruction, the Underfloor Mount will be your best choice.

The underfloor mount is most often used for side door mounts on pontoon boats and pontoon boats with lower horsepower ratings.

Surface Mount - The Surface Mount Kit is normally used on boats with fiberglass installs and boats with a lot of bracing in the mounting area. It is most often used on tri-toon boats for aft-deck installations and horsepower ratings above 150.

The Surface Mount utilizes the strength of the boat's cross members to secure the diving board. All that you will need to do is drill some holes and tighten some eye bolts and you will quickly be ready to go.

Ghost Mount:  The new Lillipad Ghost Mount provides an almost-invisible mounting option. It installs flush with the surface so that there is no obstruction to trip or jam your toe on! The Ghost Mount is fully encapsulated by the flooring surface to utilize its wall strength. A controlled compression system secures the backside of the Ghost Mount and locks it in at 3/4” using the step in the shoulder of the mounting body. This prevents damage from over-tightening. The Ghost Mount has been tested to over 1,000 pounds of straight pulling force in marine-grade plywood flooring with minimal deflection.

Lillipad Diving Board for Boat Specifications:

• Compatible with nearly any boat that is 18ft or longer and 7' wide with a solid, flat surface.
• Maximum Capacity: 250 lbs
• Heavy wall aluminum and stainless steel hardware design
• Minimum water depth for use: 15ft

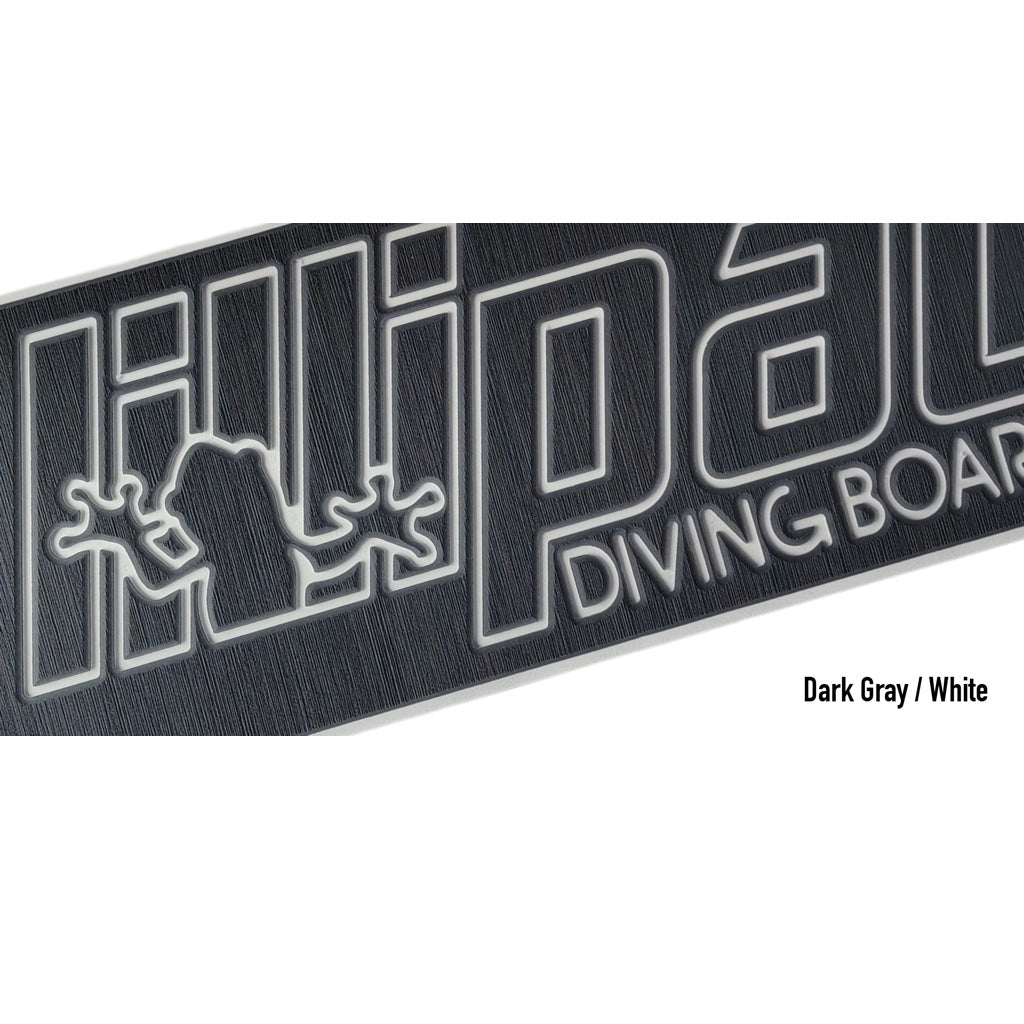

• Grip tape will last 3-5 years with average use, longer with care and cover.
• Available with Ghost Mount, Surface Mount, or Underfloor Mount

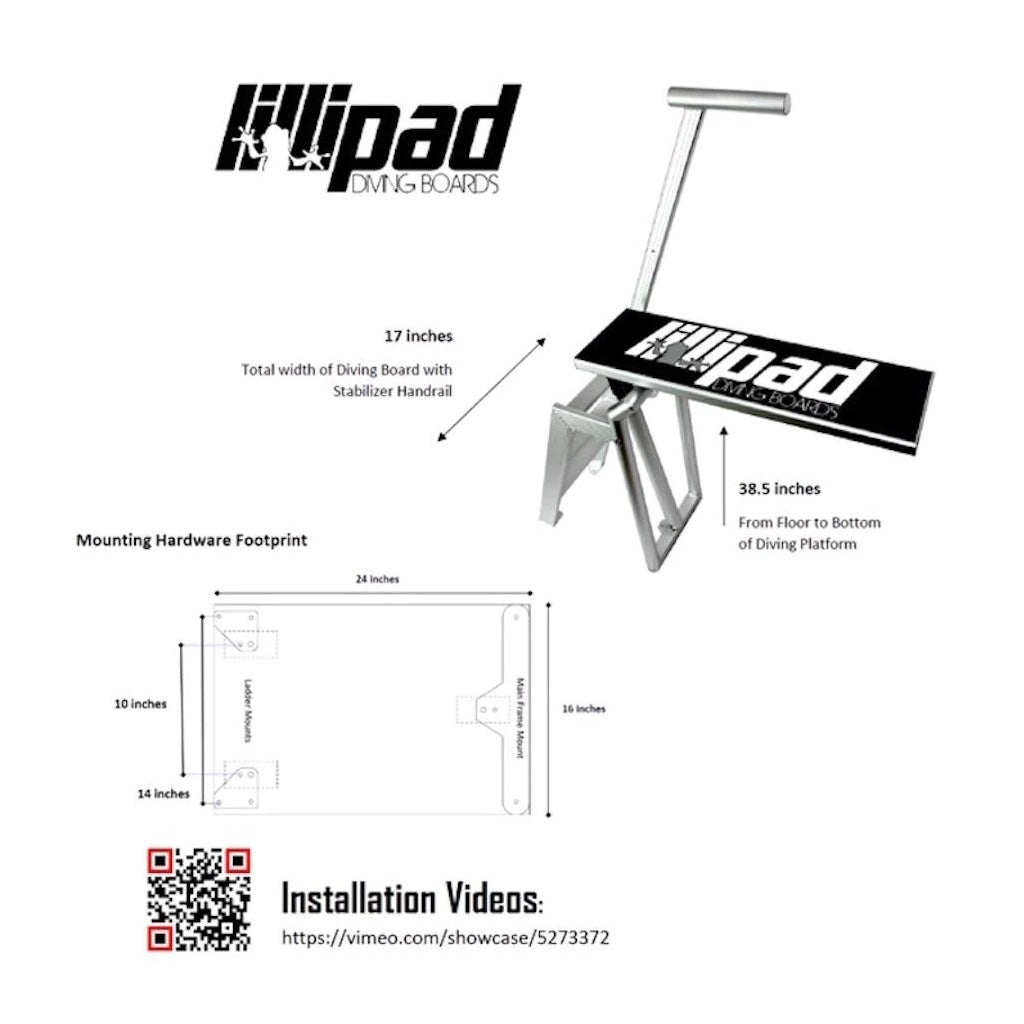

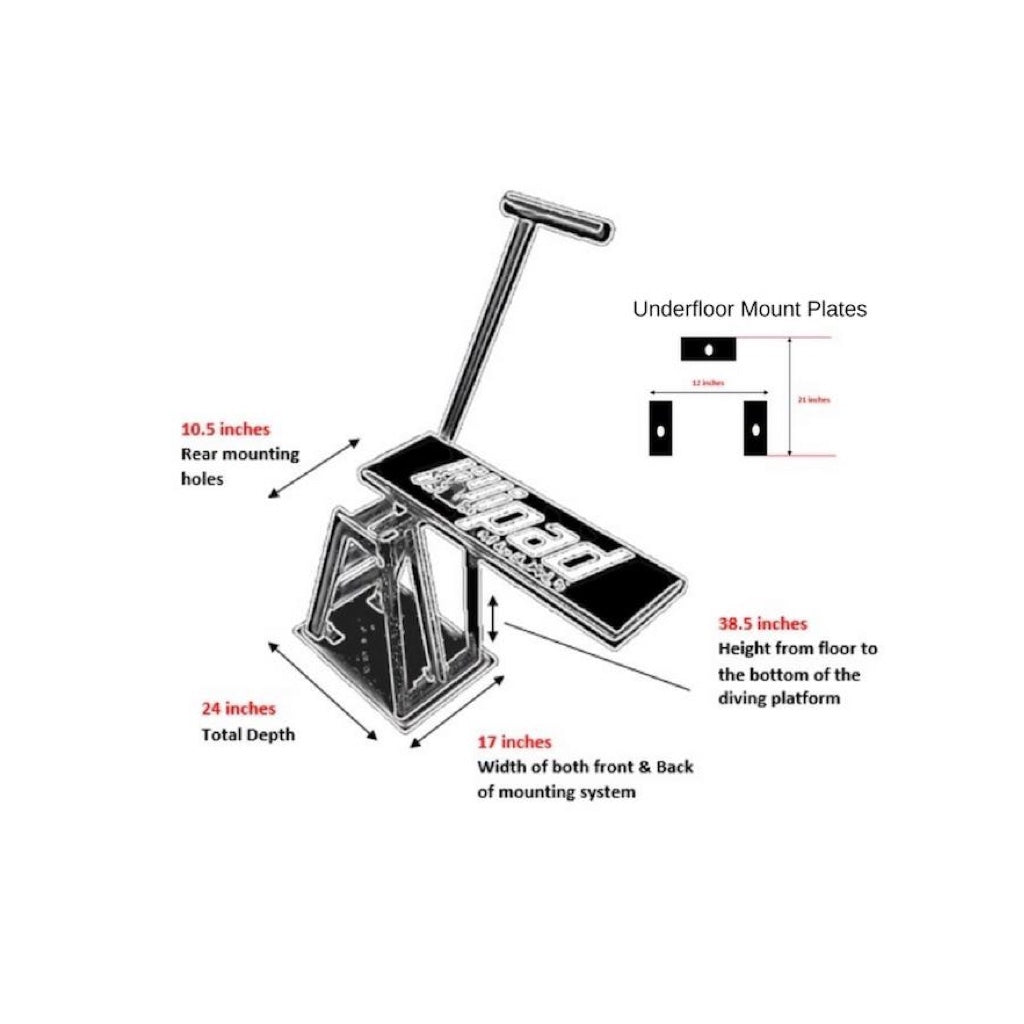

• Footprint dimensions: 19" x 24". The frame is 24" deep, 17" wide. Lillipad Diving Board is 38.5" from the floor and is 19" wide.  Rear Mounting holes are 10.5" apart.

• Lillipad Mounting Kit Guide (pdf)
• Lillipad Diving Board Boat Installation Specifications
• Lillipad Diving Board Owner's Manual and Installation Guide
• Lillipad Mounting Footprint
• Lillipad Testimonials
• Lillipad Warranty
• Lillipad Diving Board FAQ's

 Click here for a mount selection guide.
