Airmax Shallow Water Series Aeration System

Airmax Shallow Water Series Aerator System | SW20, SW40

Aeration systems utilize a shore-mounted air pump that delivers air to specialized diffuser plates that are located on the pond bottom. Resulting in a column of rising bubbles that circulates water throughout the pond, eliminating a change in temperature or thermocline. With increased oxygen and added natural bacteria, any excess nutrients in the pond or lake are metabolized, resulting in a cleaner, clearer water, and less muck. Results you can see in just 90 days!

Easy Installation with Options - Airmax Aeration Systems are the easiest and most versatile systems to install on the market. The Airmax Shallow Water Series aeration systems can be installed at the water's edge or up to 1/4 mile away from the pond or lake. No power is needed at the shore for this 115V system.  Airmax EasySet airline delivers oxygen to the water without the added expense of hiring an electrician. This high-pressure system is ideal for increasing oxygen to irregular shape or shallow ponds up to 10' deep.

Standard Airmax Composite Cabinet - ETL electrical safety certified composite cabinet has a quiet design with a faux rock finish to blend into any landscape. The removable top and side high-density air intake filters protect the compressor and pre-wired electrical box from outside contaminants while providing easy access. Other cabinet features include an elevated base protecting against damaging flood water and a ventilation fan with a rain shroud cools and protects against moisture and heat damage. Standard cabinet dimensions: 23"L x 17"W x 15"H

SilentAir Compressor with SmartStart Technology and SilentAir Linear Diaphragm Compressor - The Shallow Water Series Aeration System is powered by the powerful, yet whisper-quiet LR50 Linear Diaphragm Compressor. This 115v compressor is built for high efficiency and comes with rubber mounts to reduce noise and vibrations to ensure silent operation.

Airflow Manifold Assembly - Airmax simplifies airflow management to individual diffuser plates with a 2-port or 4-port manifold with nickel-plated ball valves, braided hose sleeves that protect internal airlines from wear and quick airline disconnects for fast and secure airline connections, and system removal for storage. The Airmax Shallow Water Series Aeration System is set up for 3/8" or 5/8" airline.

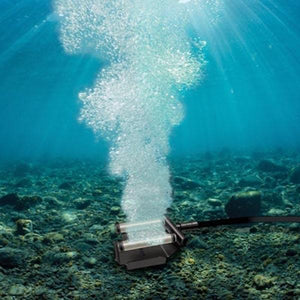

ProAir2 Weighted Diffusers - Designed for maximum oxygen uptake, 2 or 4 ProAir 2 Weighted Diffusers will be used to incorporate high-efficiency low-maintenance membrane sticks to release tiny oxygen bubbles into the water column. Membrane diffusers possess the synergy of air stones without the headaches of cracking and acid-washing. The ProAir 2 Weighted Diffuser has an integrated check valve to prevent back-pressure on the compressor. The innovative sled design keeps the ProAir 2 submerged while maintaining an upright position during installation. Comes with a 5-year warranty.

Airmax Shallow Water Series Performance Chart:

(Operating Cost was calculated at $0.07 per kilowatt hour. Please note that costs will varies on location.)

What does the Airmax Shallow Water Series Aeration System include?

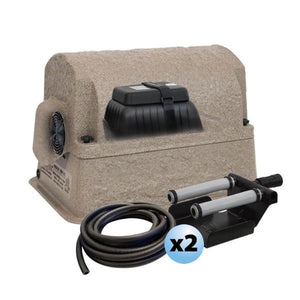

• Airmax Shallow Water Series SW20 Aeration System includes:  Linear Diaphragm Compressor, Standard Composite Cabinet, 2 ProAir 2 Weighted Diffuser Sleds, Enhanced Cooling System, Dual Air Filters, Quick Airline Disconnects, Pressure Gauge & Relief Valve, and available with or without (2) 100ft rolls of 3/8" Self-Weighted Airline. (Kink-free and fish hook resistant)

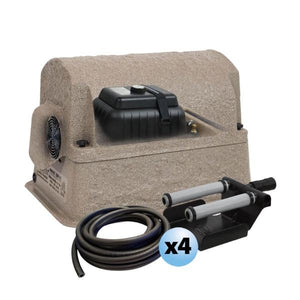

• Airmax Shallow Water Series SW40 Aeration System includes:  Linear Diaphragm Compressor, Standard Composite Cabinet, 4 ProAir 2 Weighted Diffuser Sleds, Enhanced Cooling System, Dual Air Filters, Quick Airline Disconnects, Pressure Gauge & Relief Valve, and available with or without (4) 100ft rolls of 3/8" Self-Weighted Airline. (Kink-free and fish hook resistant)

Airmax Manuals and Documents:

• Airmax Shallow Water Series System Manual
• Airmax Shallow Water Series Aerator Warranty

References:

Click Here to View our Benefits of Pond Aeration Infographic
