EasyPro Air De-Icing Dock Bubbler System

EasyPro DKSW30, DKSW45, DKDW60, DKDW100 Dock Bubbler Systems

Diffused Air De-Icing Systems: Protect your dock from costly ice damage

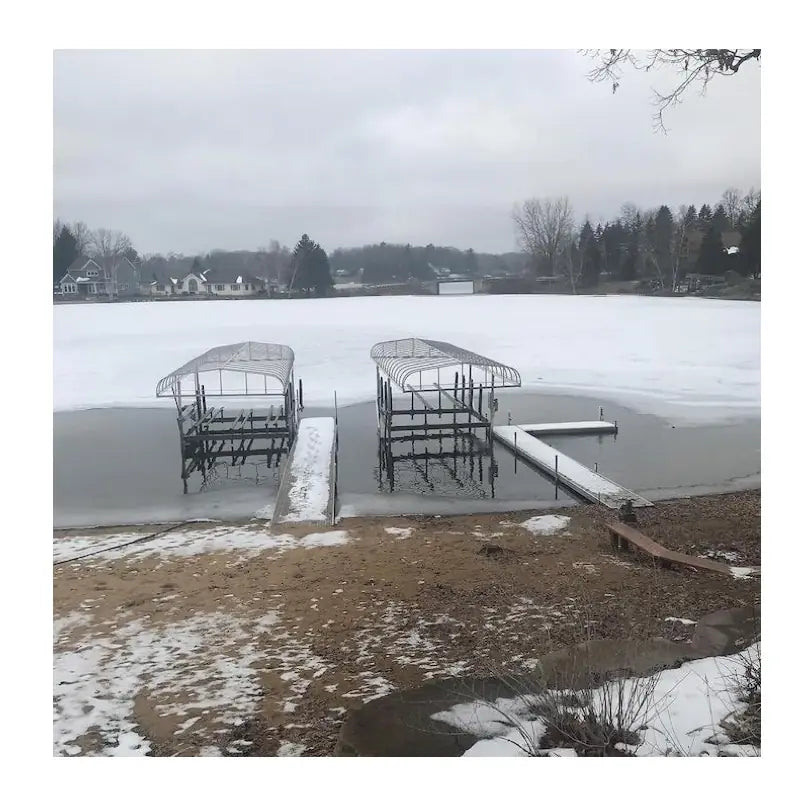

Diffused air de-icing systems are an excellent choice for keeping water open during the winter around boat lifts, docks, piers, marinas and other structures. Damage repair and labor costs to remove or install your dock every year can be expensive. For just a few dollars per month in electricity, a diffused air system will maintain open water and protect your dock from ice damage. A minimum of three-foot deep water is needed for diffused air to be effective.

EasyPro Dock Bubbler System Specifications:

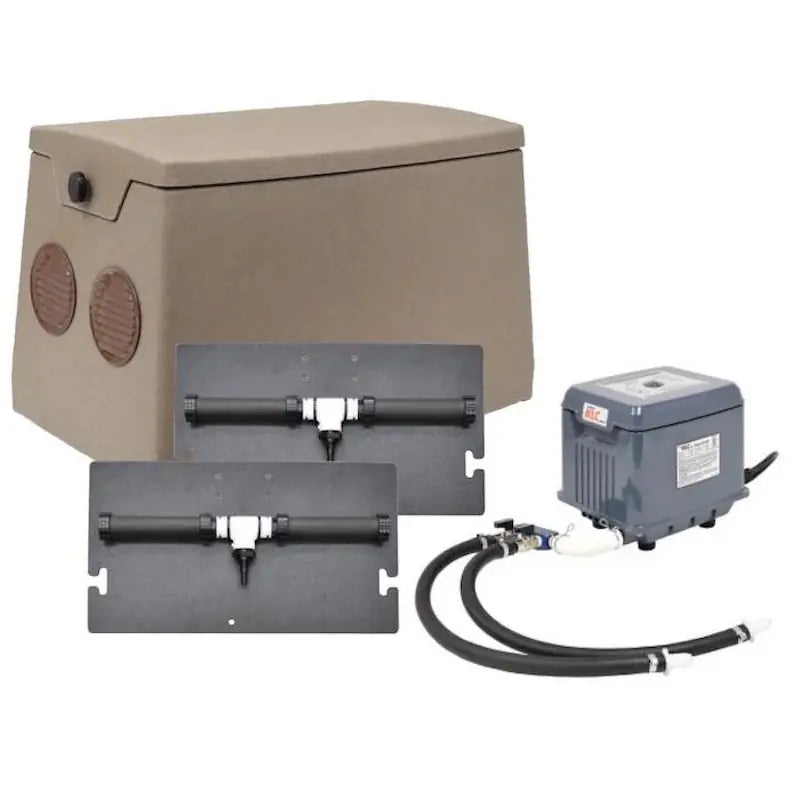

DKSW30 Air De-Icing System for Shallow Water – up to 30′ dock

• Two diffuser system with KLC80 compressor for 3′ to 6′ depths and docks up to 30′ long.

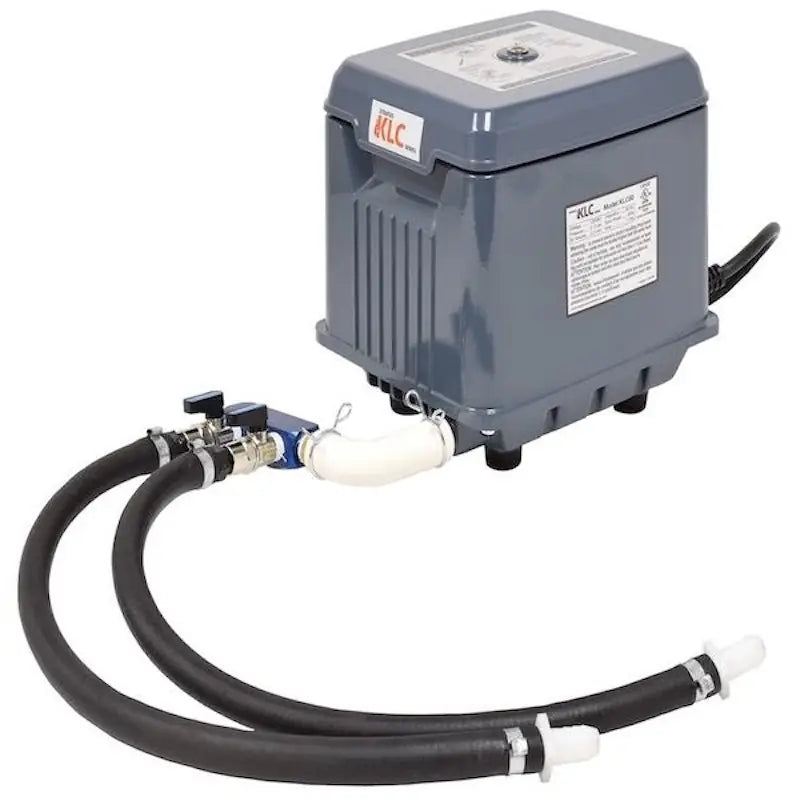

• KLC60 linear diaphragm compressor is extremely energy efficient, quiet, and long-lasting
• Two self-weighted DM2 air diffusers
• 50′ of 1/2″ Quick sink tubing for easy installation
• Weather-resistant cabinet enclosure – for additional protection from elements
• 3-year warranty on compressor, 5-year warranty on tubing/diffusers

• Tubing: 50 feet of 1/2 inch Quick Sink

• Voltage: 115v
• Watts: 60w
• Maximum Air Flow: 3.1 cfm
• Max Depth: 7 ft
• Weight 73 pounds

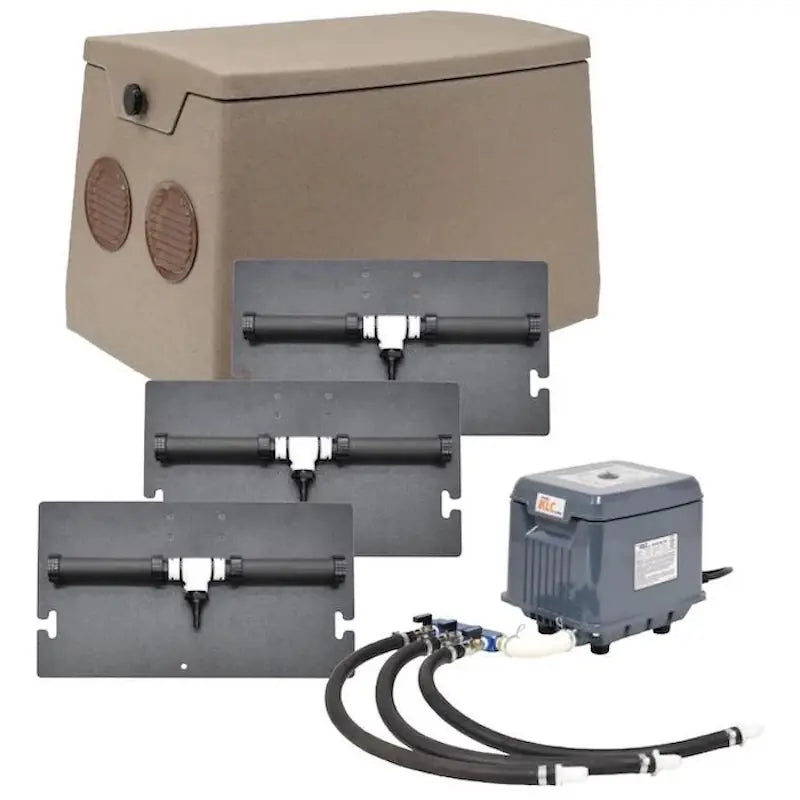

DKSW45 Air De-Icing System for Shallow Water – up to 45′ dock

• Three diffuser system with KLC80 compressor for 3′ to 6′ depths and docks up to 45′ long.
• KLC80 linear diaphragm compressor is extremely energy efficient, quiet, and long-lasting
• Three self-weighted DM2 air diffusers
• 100′ of 1/2″ Quick sink tubing for easy installation
• Weather-resistant cabinet enclosure – for additional protection from elements
• 3-year warranty on compressor, 5-year warranty on tubing/diffusers

• Tubing: 100 feet of 1/2 inch Quick Sink

• Voltage: 115v

• Watts: 70w

• Maximum Air Flow: 3.7 cfm

• Max Depth: 7 ft

• Weight 88 pounds

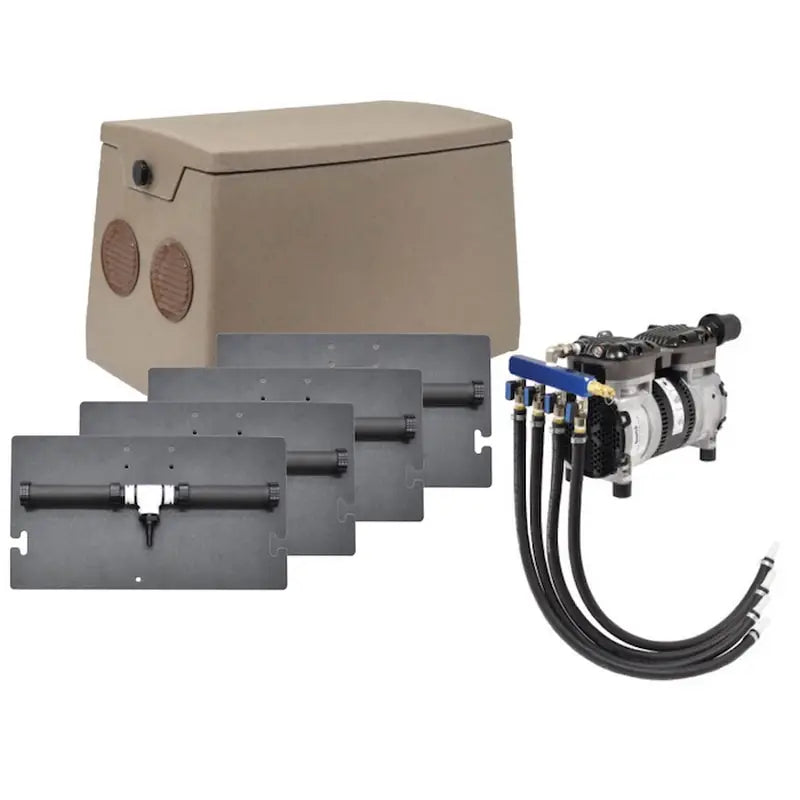

DKDW60 Air De-Icing System for Deep Water – up to 60′ dock

• Four diffuser systems with SRC50 compressor for depths 7’+ and docks up to 60′ long.

  • SRC50 Stratus rocking piston compressor is energy-efficient and powerful for deeper water
  • Four self-weighted DM2 air diffusers
  • 150′ of 3/8″ Quick sink tubing for easy installation
  • Weather-resistant cabinet enclosure – for additional protection from elements
  • 2-year warranty on compressor, 5-year warranty on tubing/diffusers

• Tubing: 150 feet of 3/8 inch Quick Sink
• Voltage: 115v
• Watts: 340w-586w
• Maximum Air Flow: 4.5 cfm
• Max Depth: 50 ft
• Weight 103 pounds

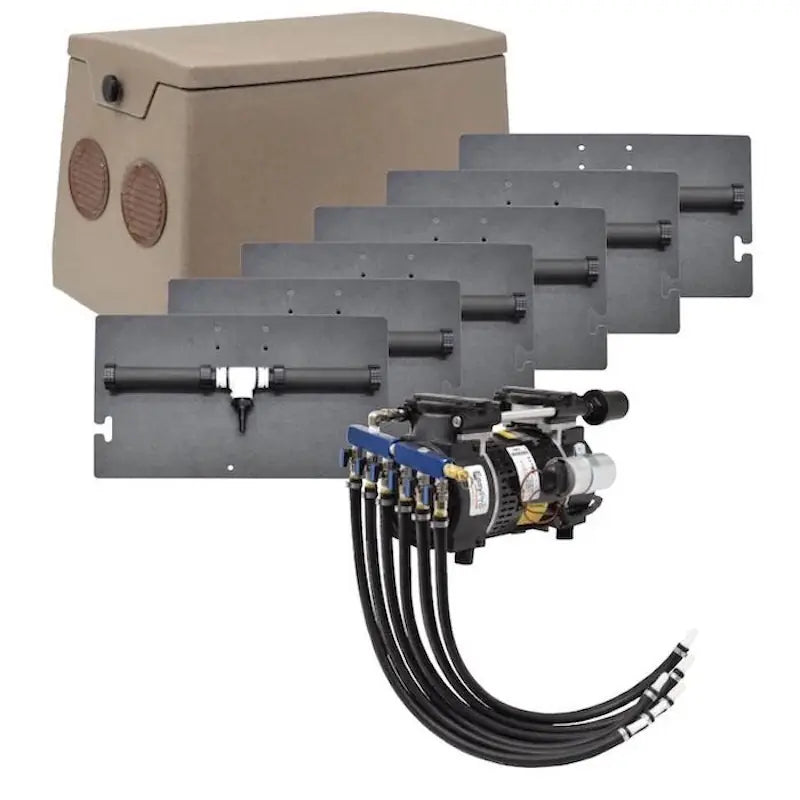

DKDW100 Air De-Icing System for Deep Water – up to 100′ dock

• Six diffuser system with SRC75 compressors for depths 7’+ and docks up to 100′ long.

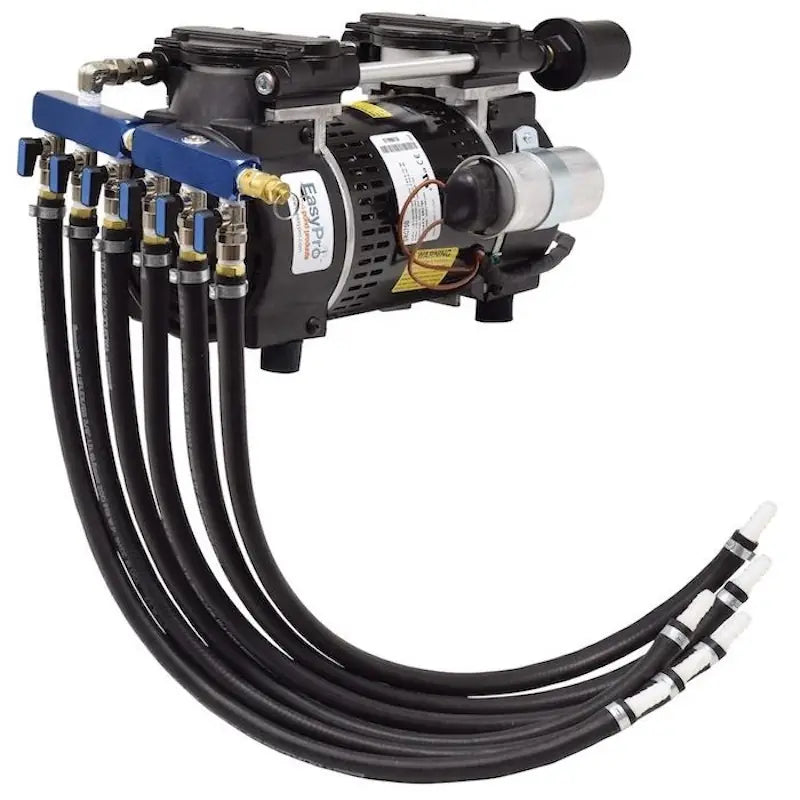

• SRC75 Stratus rocking piston compressor is energy-efficient and powerful for deeper water
• Six self-weighted DM2 air diffusers
• 325′ of 3/8″ Quick sink tubing for easy installation
• Weather-resistant cabinet enclosure – for additional protection from elements
• 2-year warranty on compressor, 5-year warranty on tubing/diffusers
• Tubing: 325 feet of 3/8 inch Quick Sink

• Voltage: 115v

• Watts: 398w-620w

• Maximum Air Flow: 6.5 cfm

• Max Depth: 50 ft

• Weight 156 pounds


EasyPro Dock Bubbler System Documents:

• Diffuser Assembly Directions
• Weather-Proof Cabinet Installation Instructions
• EasyPro De-Icer Compressor Instruction Manual
