Bixpy K-1 Outboard Kit

Bixpy K-1 Outboard Motor Kit

The Bixpy K-1 Outboard Motor Kit is a great accessory and addition to any kayak, SUP, inflatable boat, and more — your adventures will get easier and more enjoyable.  This battery-powered motor easily attaches to your vessel to power you wherever you want to go.

This outboard kit is the best paddleboard or kayak motor on the market. With a long runtime and powerful thrust, you can explore new areas with less effort! No need to use your energy on paddling, you can kick back and enjoy the day or power your kayak fishing adventures.

We can't wait for you to get on the water with your Bixpy K-1 Outboard Motor Kit!

The Bixpy Outboard Kit is the Best Accessory for Kayaks, Paddleboards, Inflatable Boats, & more

Bixpy K1 Outboard Motor Highlights

⭐️ Up to 12 Hours of Runtime - At top speed you will get about 1 hour 20 minutes of runtime. At slower speeds, you can run for up to 12 hours!

⭐️ Warp Speed Feature - Quickly hit top speed with the double click of a button.

⭐️ Smooth Ride - Greatly improved performance over the J-2 model. Gear transitions are smoother and the ride is consistent.

⭐️ Multi-Gear Motor with Bluetooth Remote - 12 Forward Speeds, 3 Reverse Speeds. Easily change gears with a button on your wrist.

Bixpy K1 Outboard Motor features and benefits:

✅ Great Motor Output: The Bixpy PowerShroud, K-1 brushless motor, and NASA-inspired propeller combine to produce 33 lbs of thrust with the PP0378 battery for 145 GPM Output; 38 lbs with the PP-768.

✅ New K-1 Motor Improvements from the J-2 Model: Almost 20% shorter in length, Similar top speed with better overall performance. It is a smoother ride with seamless transitions between gears and it is quieter.

✅ Better Tracking: The Airfoil fin makes it easier to steer and to stay on the intended path.

✅ Durable Design: The K-1 motor is built to last. An anodized aluminum casing protects the motor. It is water and dirt-proof and resistant to corrosion.

✅ Ready for Lakes & Ocean Use - Built to excel in both freshwater and saltwater.

✅ Compatible with Most Adapters: The K-1 motor has over 20 adapters to meet your needs and it is also compatible with most J-2 adapters.

Bixpy PP-378 Battery (V4) features and benefits:

✅ Provides up to 10 Hours of Runtime: Powers the Bixpy K-1 motor for up to 10 hours at slower speeds or up to 1 hour 15 minutes at max speed.

✅ Ultralight and Buoyant: At only 7 lbs & with an easy-carry handle, it is lightweight and will float in the water. Easy to tie or strap down.

✅ Controlled by BlueTooth Remote: Easily flip between 12 forward speeds and 3 reverse speeds with the remote control that is worn on your wrist.

✅ Safety Kill Switch - A leash is magnetically connected to the unit and will shut down the power if it is disconnected; Quickly stopping the vessel.

✅ High-Quality Design - Casing is waterproof, dirt proof, and resistant to corrosion and features marine-grade stainless steel components

✅ Lithium-Ion Battery: 25.2 V battery recharges by wall charge in 5-6 hours and by solar panel in 6-10 hours.

✅ 6 LED Battery Indicator: Easily keep track of how much power you have left.

Bixpy Jet Kayak Motor Outboard Kit Specifications:

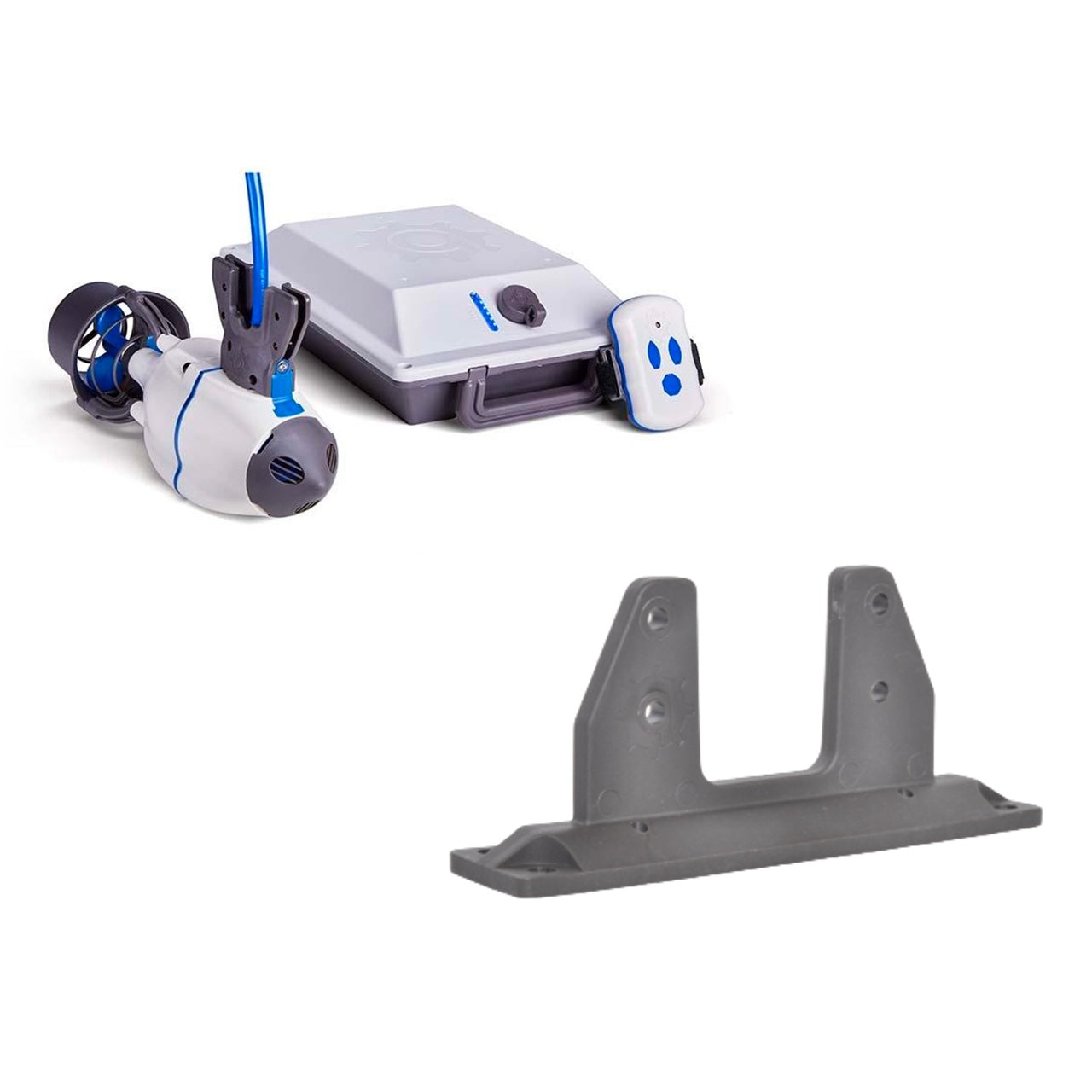

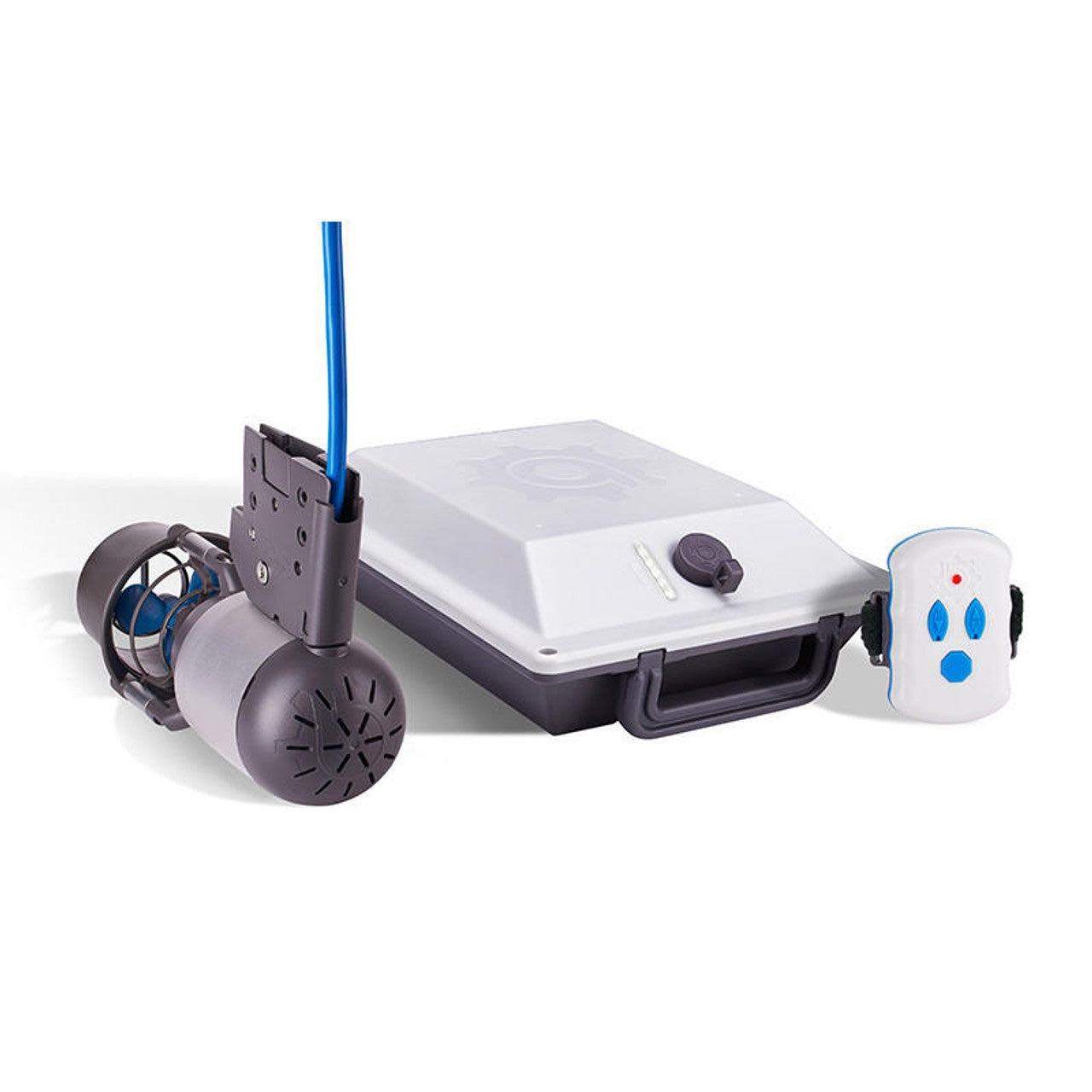

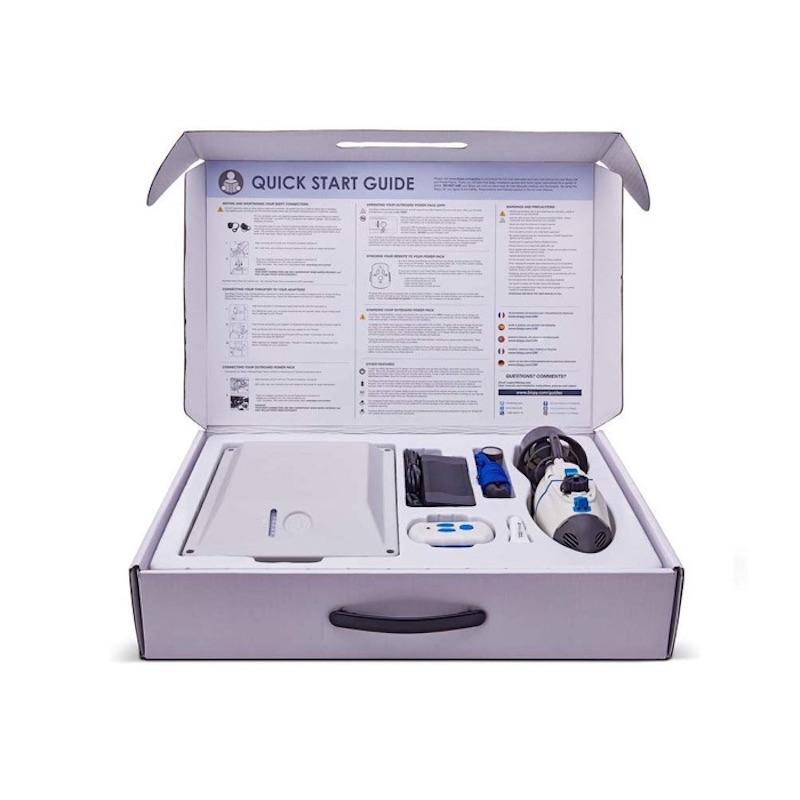

• Includes: (1) Bixpy K-1 Thruster, (1) Bixpy 378Wh (V4) Outboard Power Pack, (1) Wireless Remote Control, (1) 100-240V Charger, (1) Magnetic Kill Switch with Leash, (1 tube) 5ml of di-electric grease, fallen key to pen propeller shroud for cleaning, (1) Bixpy vinyl decal, and (1) User Manual
• Bixpy Thruster Size: 9.05in L x 3.6in W x 6.32in H
• Bixpy Thruster Weight: 2.8 lbs (includes cable and adapter)
• Cable Length: 5 ft
• Full Shroud Width: 3.6 in
• Reduced Shroud Width: 3.15 in
• Depth Rating: 100 ft
• Outboard Power Pack Size: 11.3in L x 8.75in W x 3.2in H
• Outboard Power Pack Weight: 7.17 lbs
• Combine Weight of Full Outboard Kit: < 10 lbs.
• Speeds: 12 speeds forward and 3 speeds in reverse
• Thrust: 33 lbs (with PP-378); 38 lbs (with PP-768)
• Top Speed: Up to 7 mph
• Remote Control Range: 25ft - 30ft
• Outboard Power Pack Battery: Rechargeable 25.2v Lithium-Ion, Emission Free
• Watt-Hours: 378 Wh
• Power Pack Status: 6 LED light indicator on top of the power pack
• Charge Time: 5.5 hours
• Running Time: 75 minutes of continuous use at top speed, up to 10 hours at slow speed
• Safety: High-quality magnetic kill leash for emergency shut-off. Floating power pack and remote.
• Protection: Waterproof and corrosion-resistant housing and components that also keep debris and dirt out.
• Water Use: Marine-grade stainless steel components for salt water or fresh water use
• Auxiliary Outlet: 5V & 12V

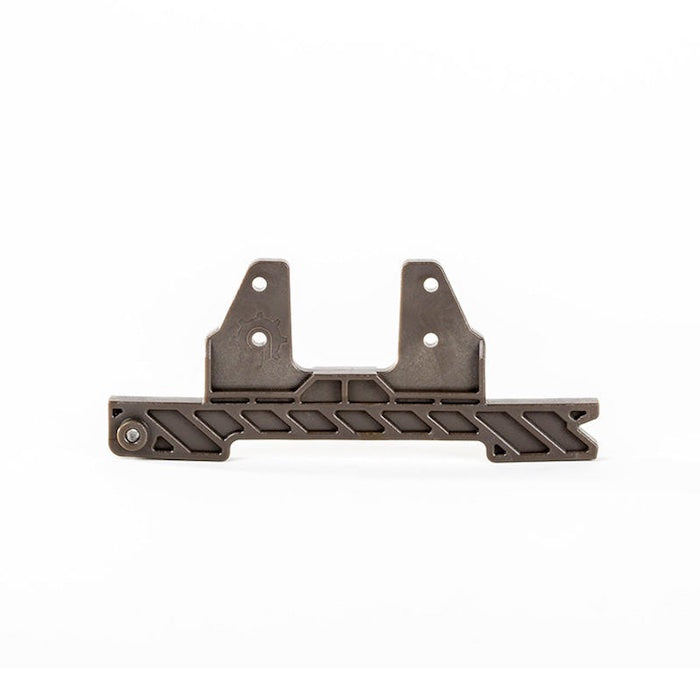

Bixpy Adapters for K-1 Motor

Bixpy Jet Kayak Motor Adapters:

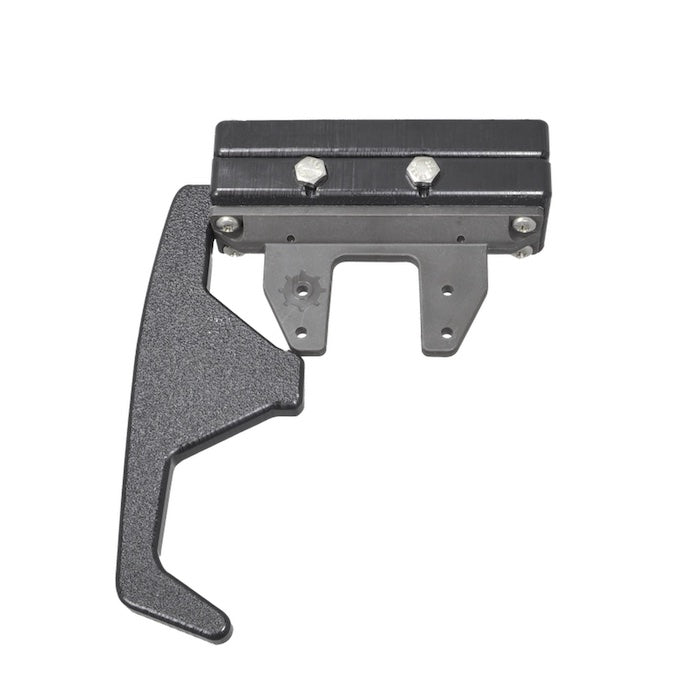

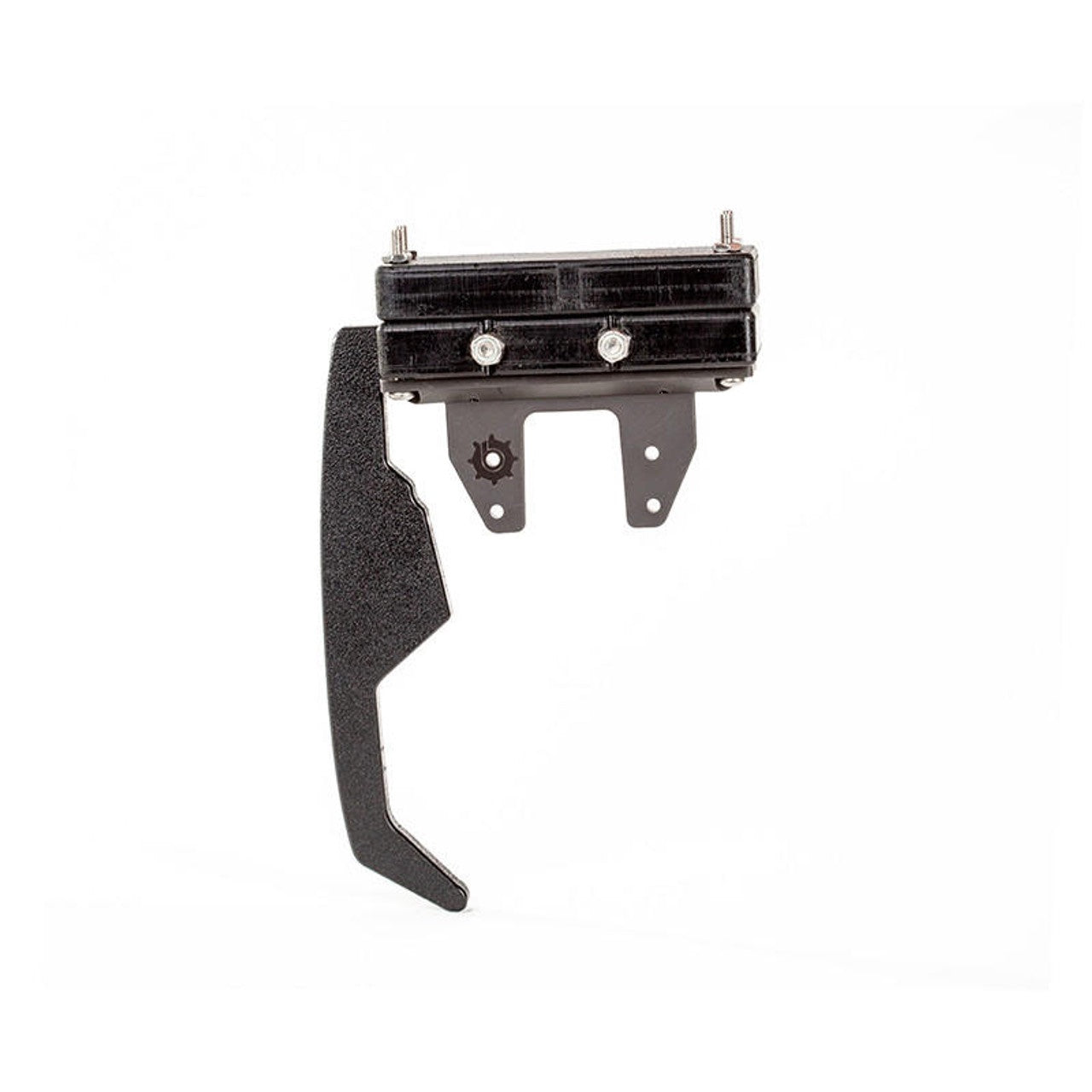

• Bixpy DIY Adapter (Do It Yourself)

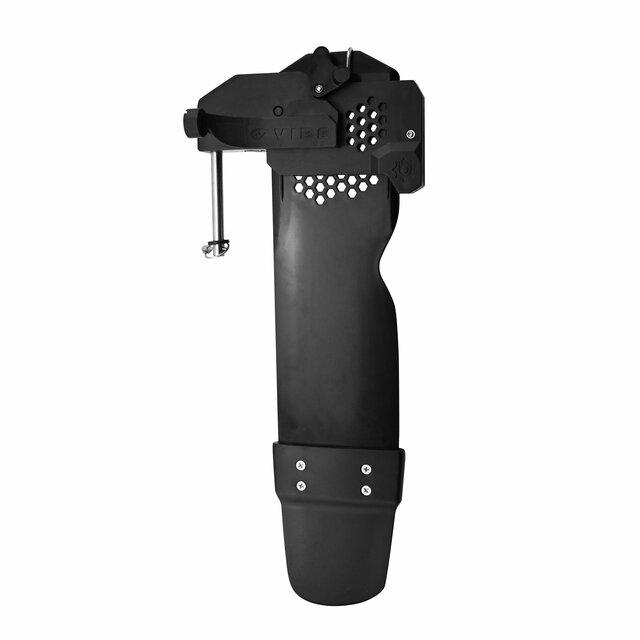

• Bixpy Universal Rudder Adapter for Kayaks

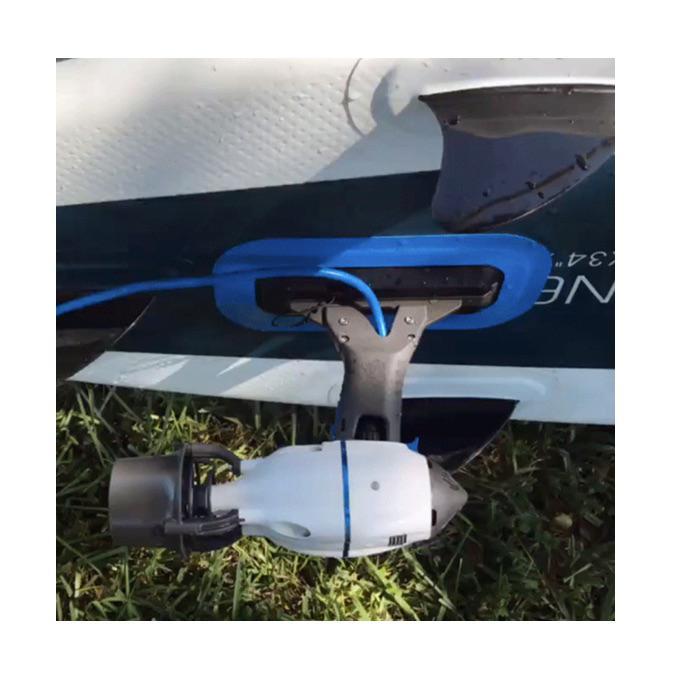

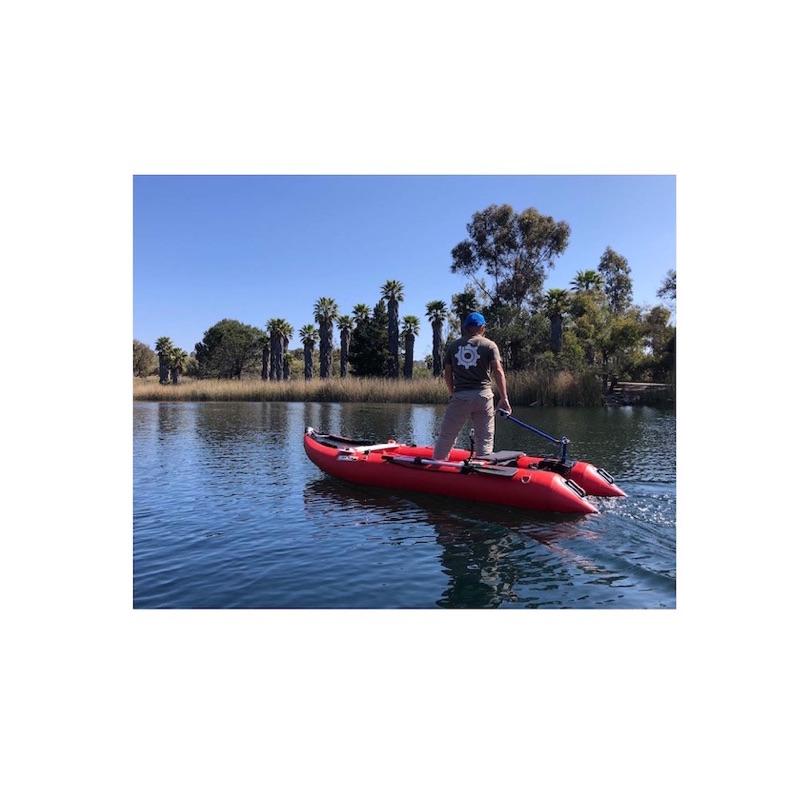

• Bixpy Adapter for Inflatables

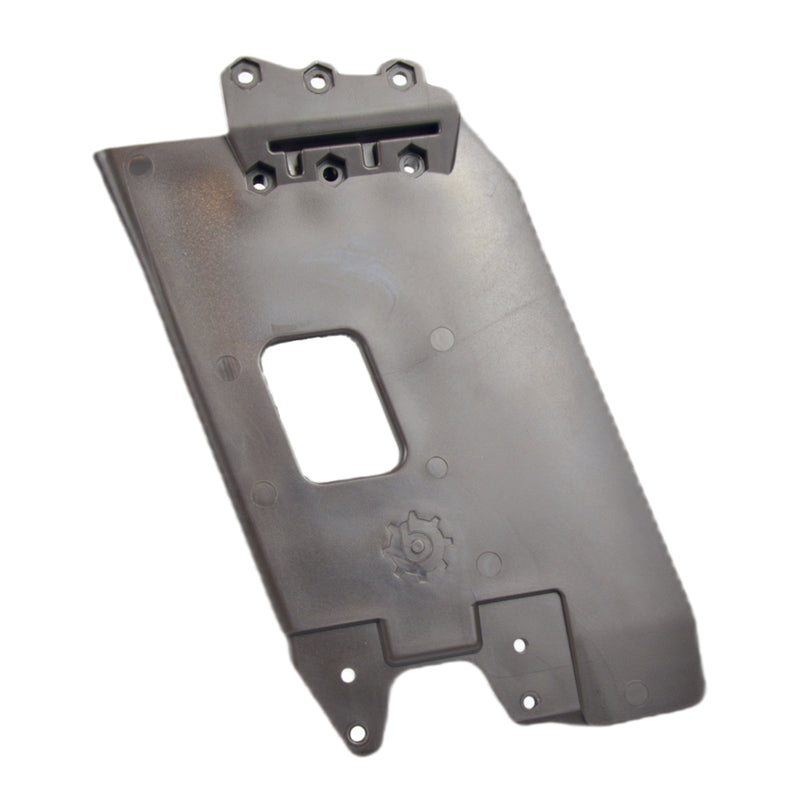

• Bixpy Hobie Twist and Stow Rudder Adapter for Kayak
• Bixpy Universal Kayak and Canoe Adapter
• Bixpy Universal Transom Adapter

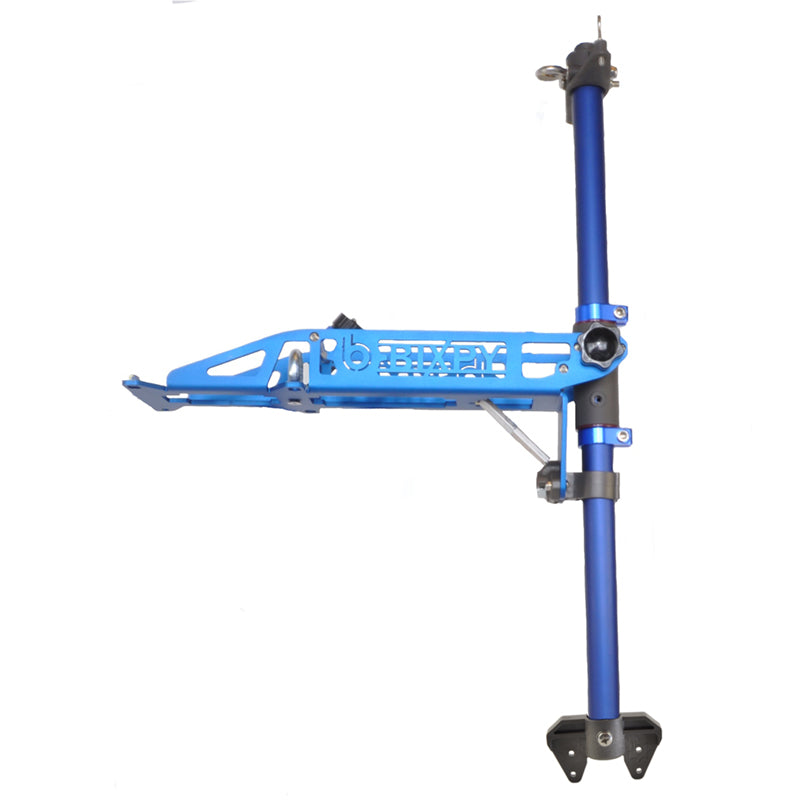

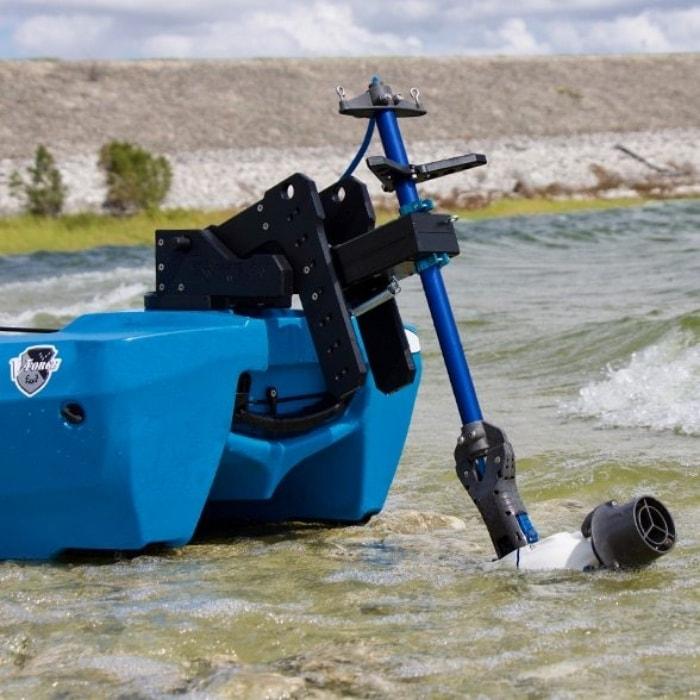

• Bixpy Universal Power Pole Adapter
• Bixpy Jet Dry Pod Adapter for Bonafide Kayaks

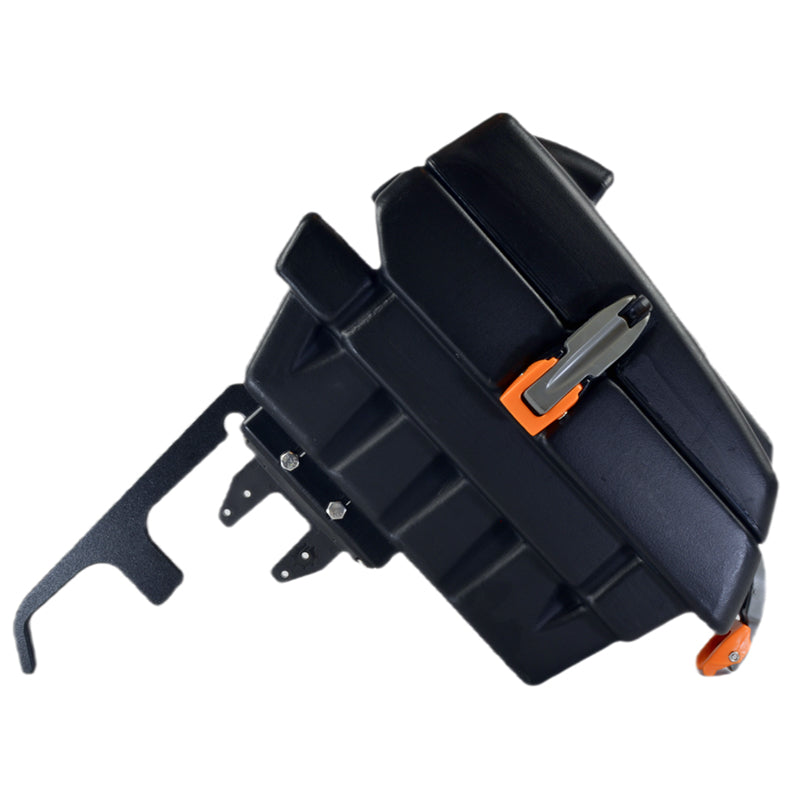

• Bixpy Jet Dry Pod Adapter for FeelFree Kayaks

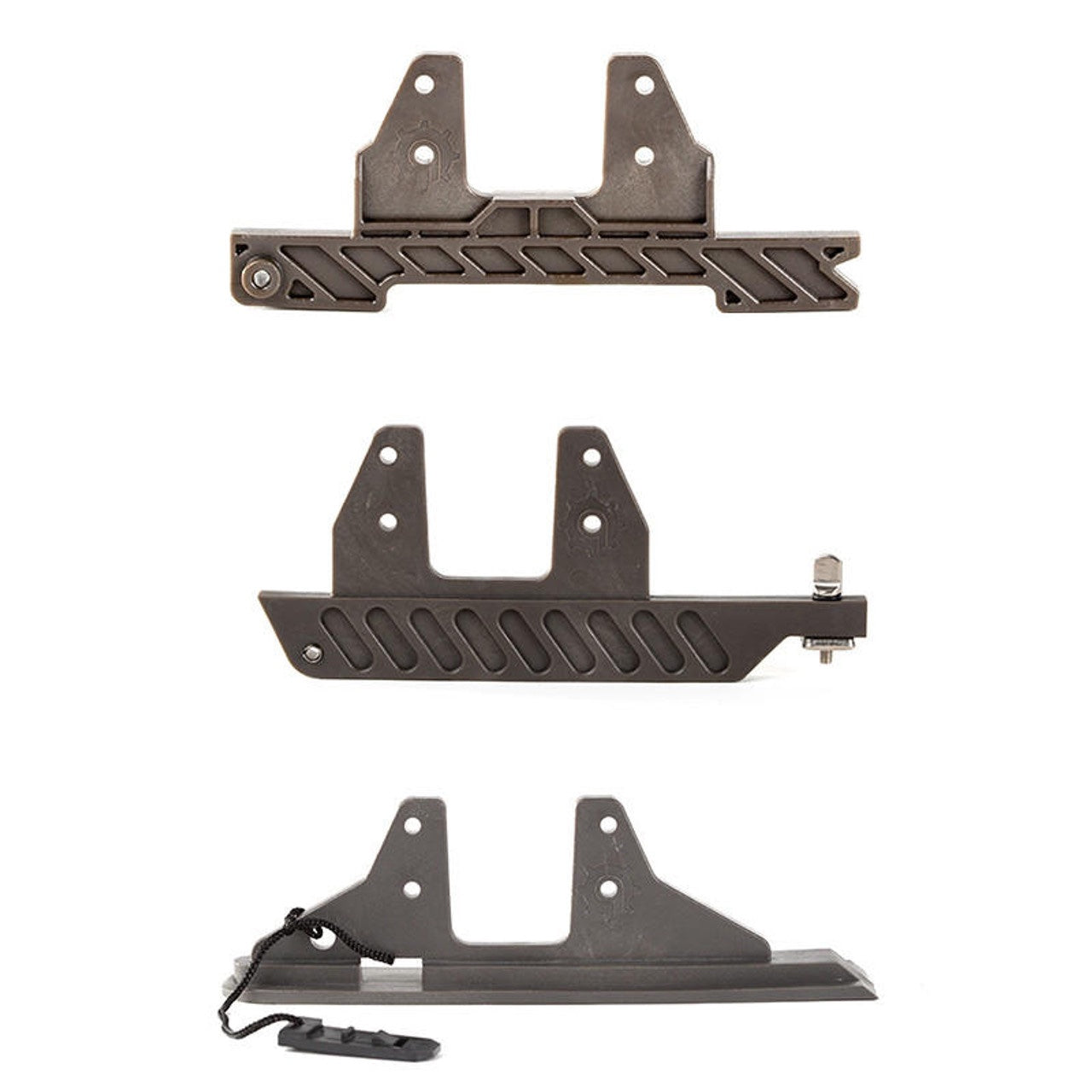

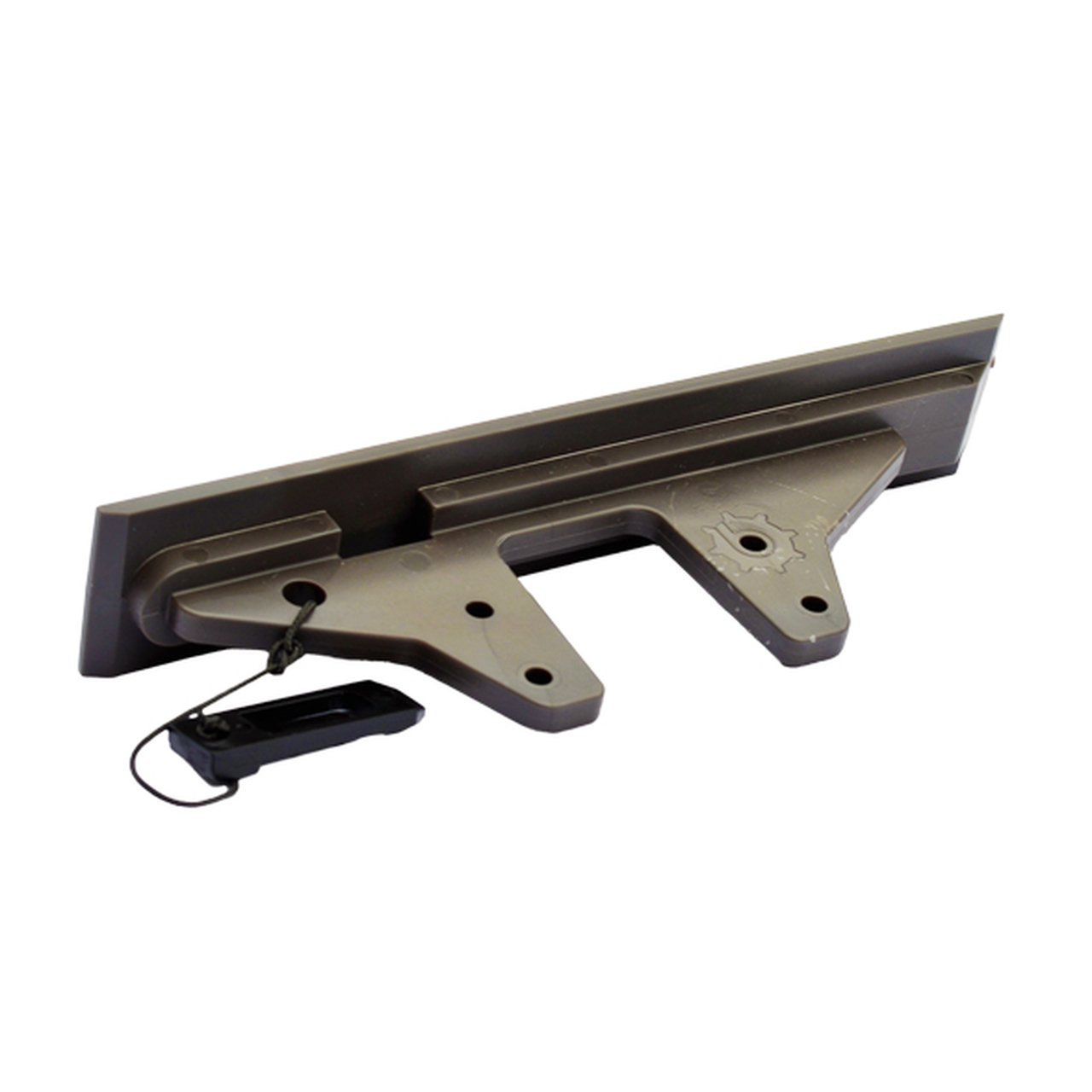

• Bixpy SUP Adapter with Standard Slide and Lock Fin

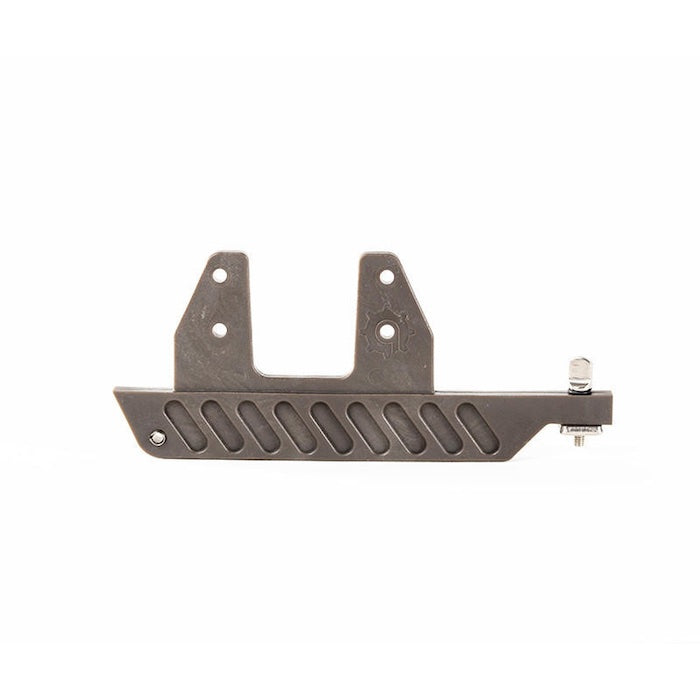

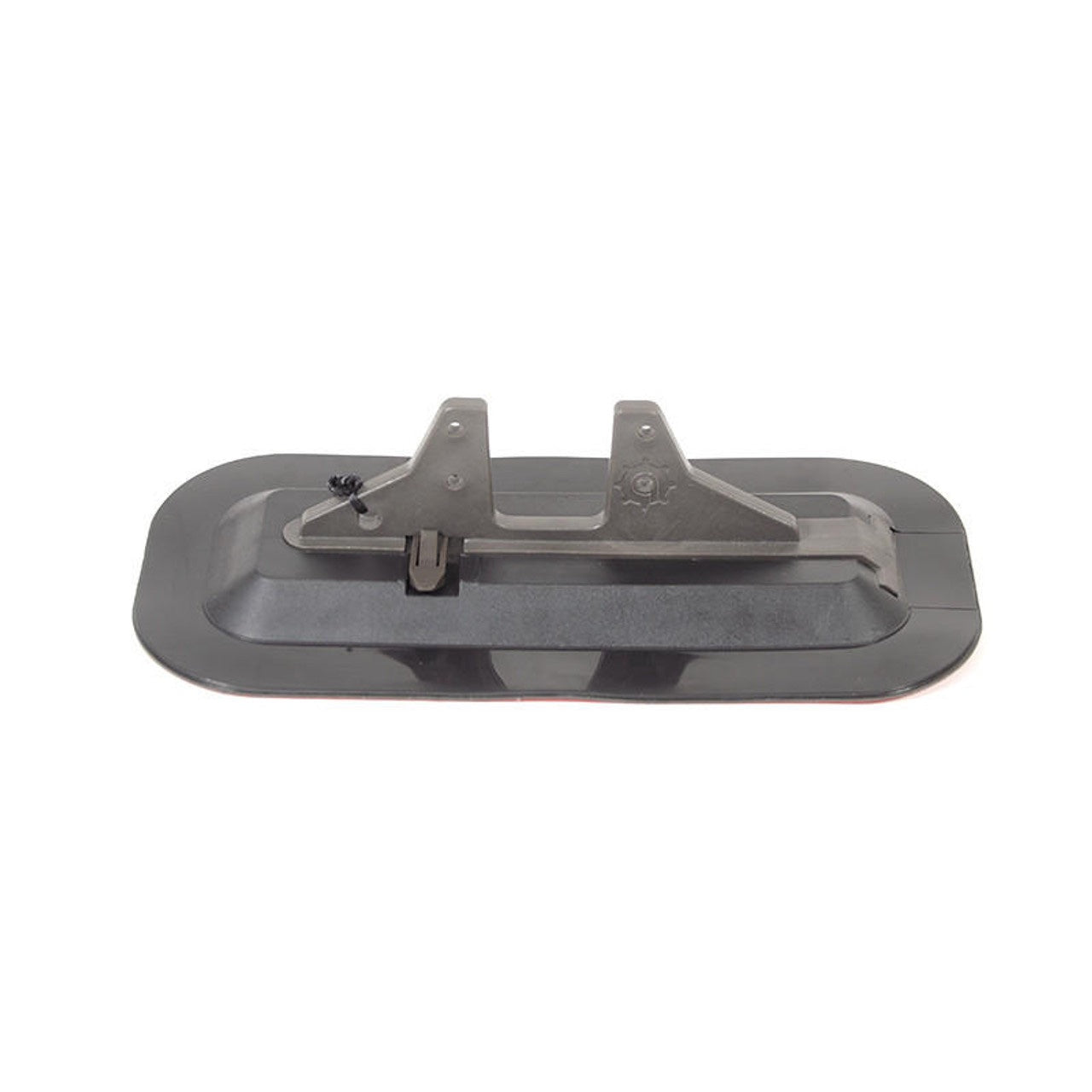

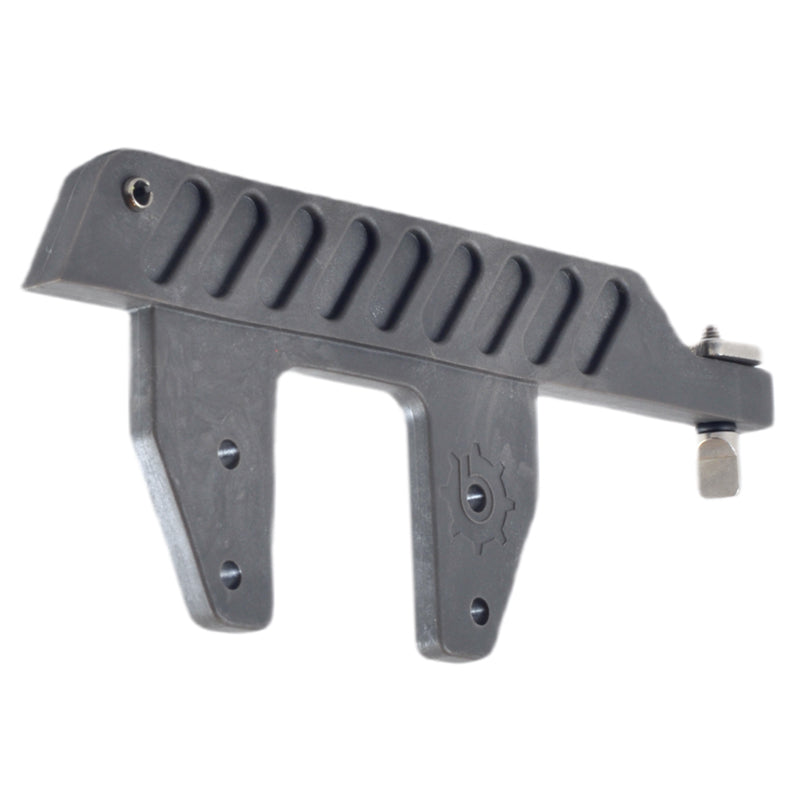

• Bixpy SUP Adapter with US Fin Box

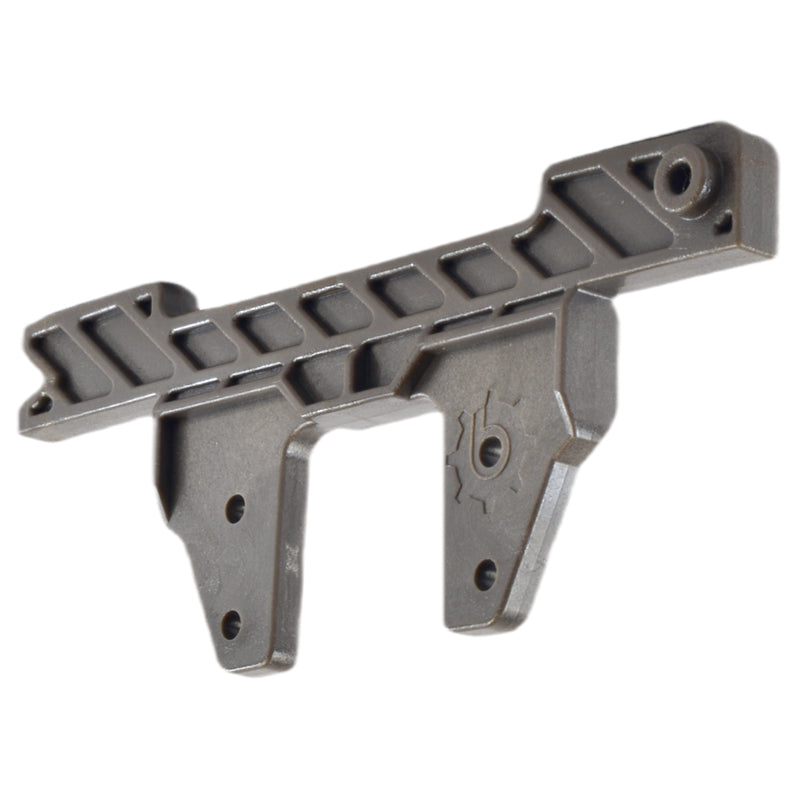

• Bixpy SUP Adapter with Flip and Lock Fin

• Bixpy Thruster User Guide
• Bixpy Jet Kayak Motor Quick Start Guide
• Bixpy Outboard Motor Power Pack User Manual Vol 1 (up to June 2019)
• Bixpy Kayak Outboard Motor Power Pack User Manual Vol 2 (Post June 2019)

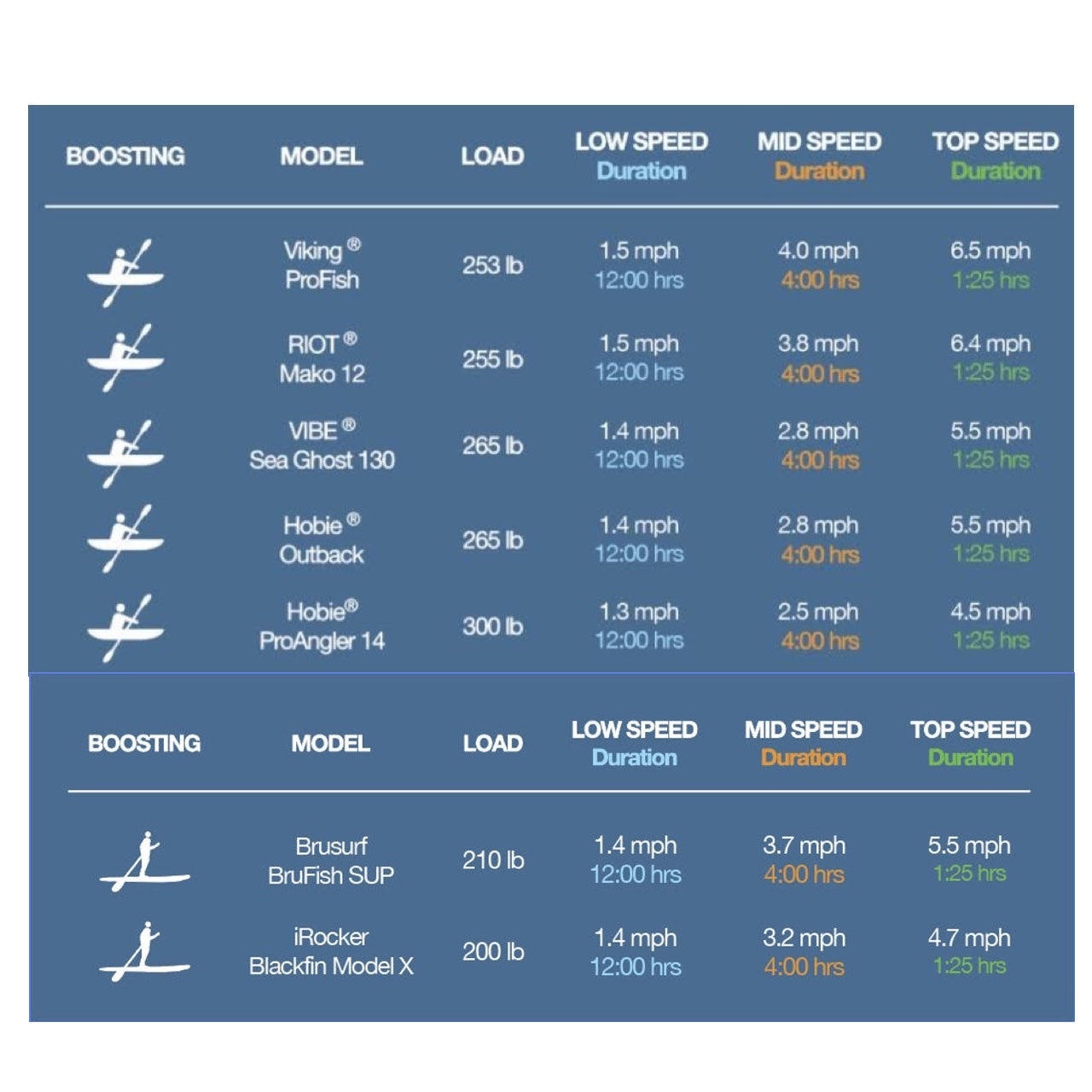

• Bixpy Kayak Jet Motor Performance Chart

Bixpy Jet Kayak Motor Mounts Instruction Manuals:

• Bixpy DIY Adapter Installation Guide
• Bixpy DIY Rudder Template
• Bixpy Universal Rudder Installation Guide
• Bixpy Jet Motor Inflatables Adapter Installation Guide
• Bixpy Hobie Twist and Stow Rudder Adapter Installation Guide
• Bixpy Jet Kayak Motor Hobie Mirage Adapter Installation Guide
• Bixpy Jet Motor Universal Kayak and Canoe Adapter Installation Manual
• Bixpy Jet Motor Hobie Pro Angler Adapter Installation Manual
• Bixpy Universal Power Pole Adapter Foot Print
• Bixpy K-1 Motor Full User Manual and Safety Guide
